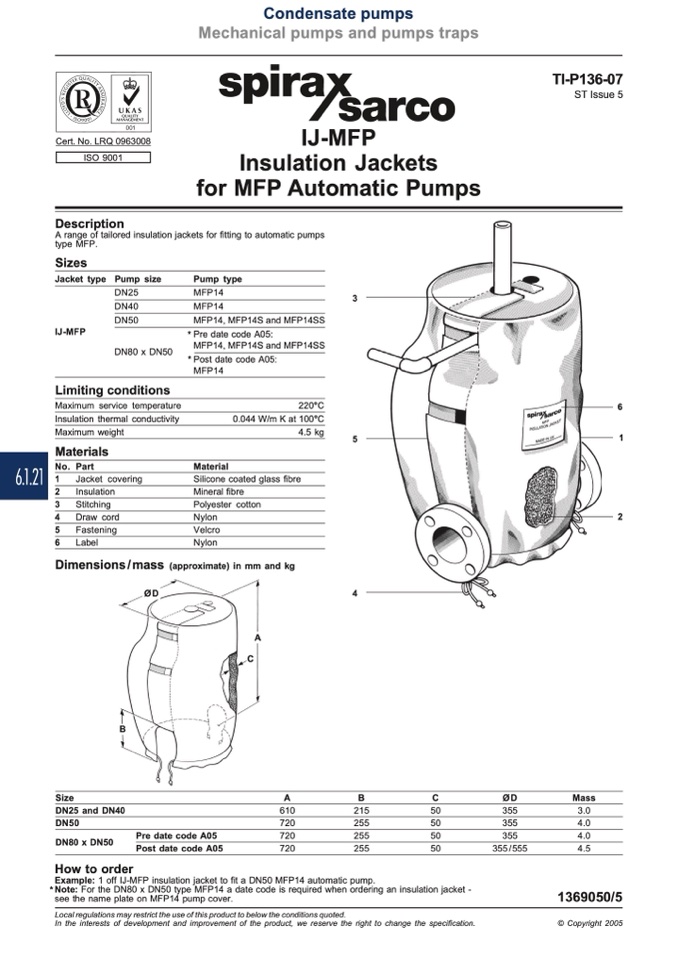

Description

IJ-MFP

Insulation Jackets

for MFP Automatic Pumps

A range of tailored insulation jackets for fitting to automatic pumps

type MFP.

Sizes

Jacket type Pump size

Pump type

MFP14

MFP14

MFP14, MFP14S and MFP14SS

Pre date code A05:

MFP14, MFP14S and MFP14SS

Post date code A05:

DN25

DN40

DN50

3

5

IJ-MFP

Limiting conditions

Maximum service temperature

Insulation thermal conductivity

Maximum weight

Materials

No. Part

1 Jacket covering

2 Insulation

3 Stitching

4 Draw cord

5 Fastening

6 Label

*

*

DN80 x DN50

MFP14

220°C

0.044 W/m K at 100°C

4.5 kg

Material

6

1

Silicone coated glass fibre

Mineral fibre

Polyester cotton

Nylon

2

Velcro

Nylon

Dimensions/mass (approximate) in mm and kg

B

Size

DN25 and DN40

DN50

DN80 x DN50

How to order

A

B

C

ØD

Mass

A

C

4

Pre date code A05

Post date code A05

610

215

720

255

720

255

720

255

50

355

50

355

50

355

50

355/555

3.0

4.0

4.0

4.5

1369050/5

© Copyright 2005

Example: 1 off IJ-MFP insulation jacket to fit a DN50 MFP14 automatic pump.

* Note: For the DN80 x DN50 type MFP14 a date code is required when ordering an insulation jacket -
