Condensate pumps

Mechanical pumps and pumps traps

Safety information, installation and maintenance

For full details see the Installation and Maintenance Instructions (IM-P136-03) supplied with the product.

Installation note:

For best operation any flash steam must be vented or condensed ahead of the pump inlet.

How to specify

Automatic pumps shall be Spirax Sarco type MFP14 with SG iron bodies and flanged/screwed connections. They shall have stainless steel

valve and float assemblies, and a stainless steel disc check valve on the condensate inlet and outlet connections. They shall have screwed

steam/compressed air inlet and exhaust connections.

How to order

Example: 1 off Spirax Sarco DN50 MFP14 automatic pump having flanged EN 1092 PN16 connections with BSP motive fluid connections,

complete with check valves and 2" BSP screwed boss flanges.

Page 6 of 6

Spare parts

The spare parts available are detailed below. No other parts are available as spares.

Available spares

Cover gasket

Float

Inlet/outlet check valve (each)

Cover and internal mechanism assembly

Valve set (inlet and exhaust valves and seats)

Spring shaft kit (two spring assemblies including anchors and two shafts plus nuts and washers for rear shaft)

How to order spares

Always order spares by using the description given in the column headed 'Available spares' and state the size and type of pump.

Example: 1 off Cover gasket for a Spirax Sarco DN50 MFP14 automatic pump.

19

21

20

1

17 (hidden)

2

10

7

12

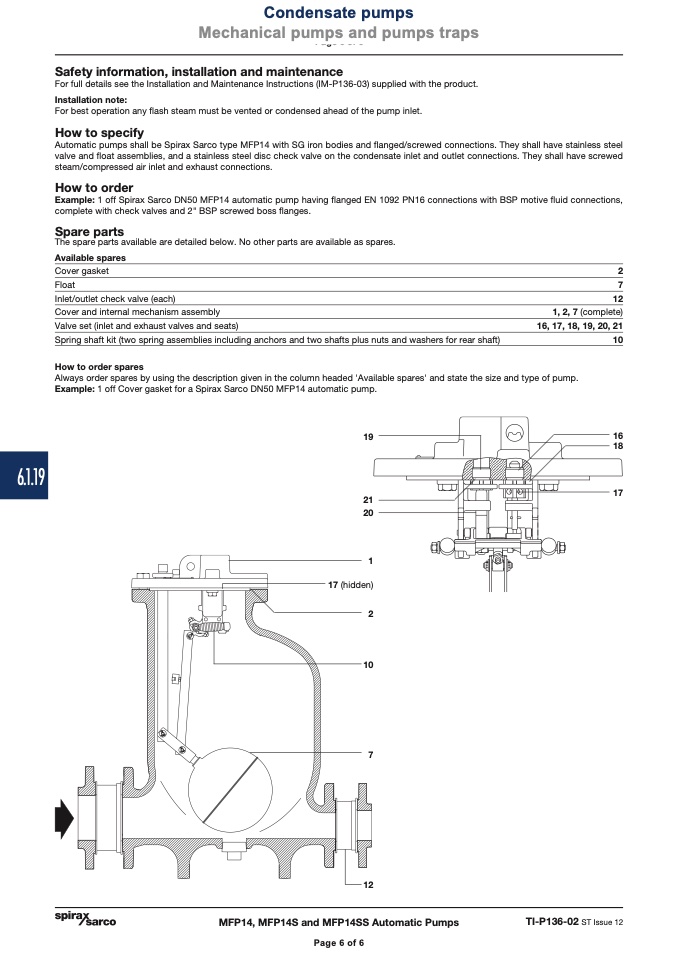

MFP14, MFP14S and MFP14SS Automatic Pumps

Page 6 of 6

2

7

12

1, 2, 7 (complete)

16, 17, 18, 19, 20, 21

10

TI-P136-02 ST Issue 12
