SG iron

Cast steel

Stainless steel

Standards

MFP14

MFP14S

MFP14SS

Condensate pumps

Mechanical pumps and pumps traps

MFP14, MFP14S and MFP14SS

Automatic Pumps

Cert. No. LRQ 0963008

ISO 9001

Description

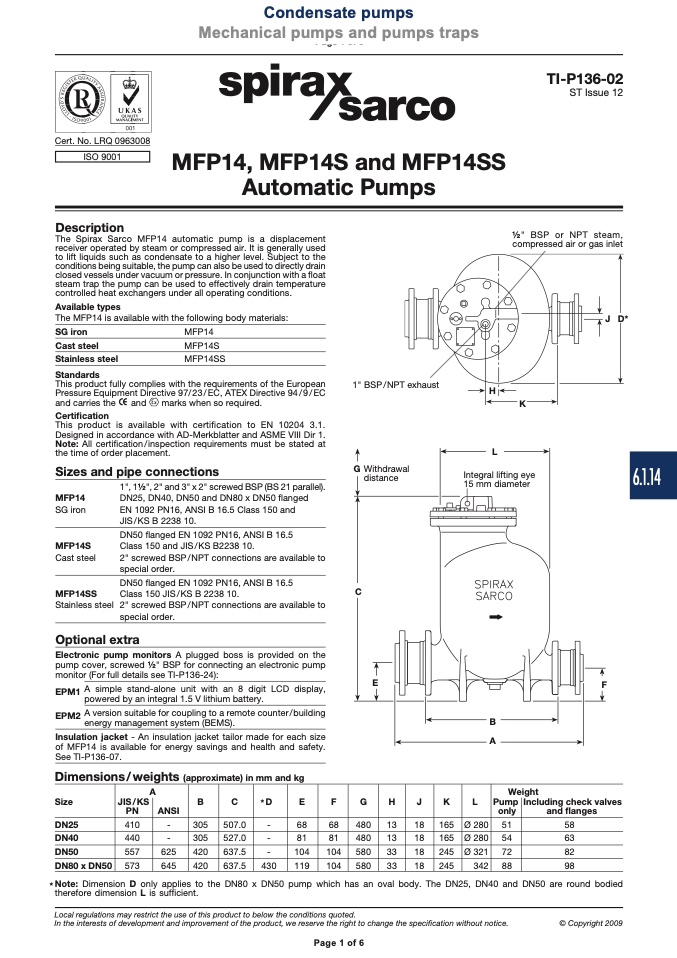

The Spirax Sarco MFP14 automatic pump is a displacement

receiver operated by steam or compressed air. It is generally used

to lift liquids such as condensate to a higher level. Subject to the

conditions being suitable, the pump can also be used to directly drain

closed vessels under vacuum or pressure. In conjunction with a float

steam trap the pump can be used to effectively drain temperature

controlled heat exchangers under all operating conditions.

TI-P136-02

ST Issue 12

1⁄2" BSP or NPT steam,

compressed air or gas inlet

Available types

The MFP14 is available with the following body materials:

J D*

This product fully complies with the requirements of the European

Pressure Equipment Directive 97/ 23 / EC, ATEX Directive 94 / 9 / EC

and carries the

and

marks when so required.

Certification

This product is available with certification to EN 10204 3.1.

Designed in accordance with AD-Merkblatter and ASME VIII Dir 1.

Note: All certification/inspection requirements must be stated at

the time of order placement.

Sizes and pipe connections

1" BSP/NPT exhaust

H

L

MFP14

SG iron

MFP14S

Cast steel

MFP14SS

Stainless steel

1", 11⁄2", 2" and 3" x 2" screwed BSP (BS 21 parallel).

DN25, DN40, DN50 and DN80 x DN50 flanged

EN 1092 PN16, ANSI B 16.5 Class 150 and

JIS/KS B 2238 10.

DN50 flanged EN 1092 PN16, ANSI B 16.5

Class 150 and JIS/KS B2238 10.

2" screwed BSP / NPT connections are available to

special order.

DN50 flanged EN 1092 PN16, ANSI B 16.5

Class 150 JIS/KS B 2238 10.

2" screwed BSP / NPT connections are available to

special order.

G Withdrawal

distance

C

E

Integral lifting eye

15 mm diameter

6.1.14

Optional extra

Electronic pump monitors A plugged boss is provided on the

pump cover, screwed 1⁄2" BSP for connecting an electronic pump

monitor (For full details see TI-P136-24):

EPM1 A simple stand-alone unit with an 8 digit LCD display,

powered by an integral 1.5 V lithium battery.

EPM2 A version suitable for coupling to a remote counter/building

energy management system (BEMS).

Insulation jacket - An insulation jacket tailor made for each size

of MFP14 is available for energy savings and health and safety.

See TI-P136-07.

Dimensions/weights (approximate) in mm and kg

F

Size

JIS/KS

PN

A

B

C

E

F

G

H

J

K

Weight

L

Pump Including check valves

DN25

410

DN40

440

DN50

557

625

DN80 x DN50 573

645

*Note: Dimension D only applies to the DN80

therefore dimension L is sufficient.

x DN50 pump which has an oval body. The DN25, DN40 and DN50 are round bodied

ANSI

*D

-

68

68

480

13

18

165 Ø 280 51

-

-

305

507.0

305

527.0

420

637.5

420

637.5

-

81

81

480

13

18

165 Ø 280 54

-

104

104

580

33

18

245 Ø 321 72

430

119

104

580

33

18

245

342 88

Page 1 of 6

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.

© Copyright 2009

Page 1 of 6

B

A

only

and flanges

58

63

82

98

K
