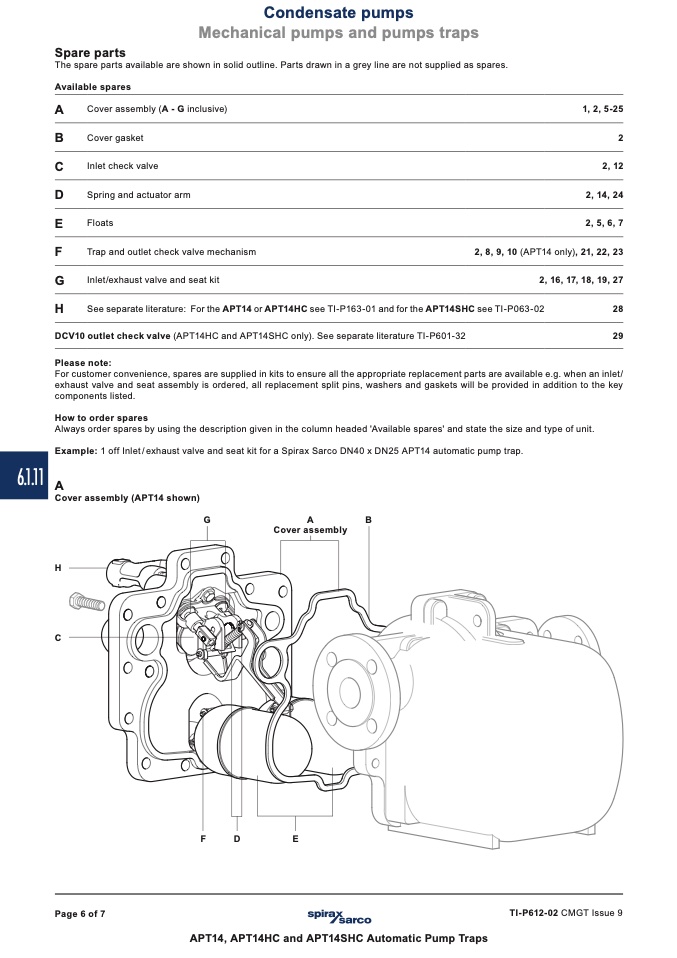

Spare parts

Condensate pumps

Mechanical pumps and pumps traps

The spare parts available are shown in solid outline. Parts drawn in a grey line are not supplied as spares.

Available spares

A

Cover assembly (A - G inclusive)

B

Cover gasket

C

Inlet check valve

D

Spring and actuator arm

1, 2, 5-25

2

2, 12

2, 14, 24

2, 5, 6, 7

2, 8, 9, 10 (APT14 only), 21, 22, 23

2, 16, 17, 18, 19, 27

H

See separate literature: For the APT14 or APT14HC see TI-P163-01 and for the APT14SHC see TI-P063-02

28

DCV10 outlet check valve (APT14HC and APT14SHC only). See separate literature TI-P601-32

29

Please note:

For customer convenience, spares are supplied in kits to ensure all the appropriate replacement parts are available e.g. when an inlet/

exhaust valve and seat assembly is ordered, all replacement split pins, washers and gaskets will be provided in addition to the key

components listed.

How to order spares

Always order spares by using the description given in the column headed 'Available spares' and state the size and type of unit.

Example: 1 off Inlet/exhaust valve and seat kit for a Spirax Sarco DN40 x DN25 APT14 automatic pump trap.

E

Floats

F

Trap and outlet check valve mechanism

G

Inlet/exhaust valve and seat kit

6.1.11

A

Cover assembly (APT14 shown)

H

C

G

A

B

Cover assembly

Page 6 of 7

TI-P612-02 CMGT Issue 9

F

D

E

APT14, APT14HC and APT14SHC Automatic Pump Traps
