For full details see the Installation and Maintenance Instructions (IM-P117-03) supplied with the product.

General

These manifolds have been designed for vertical installation. The back is provided with threaded connections M12 for ease of installation

by attaching to a supporting structure.

MSC manifold

Spacer

M12 Nut

M12 stud

Mounting kits

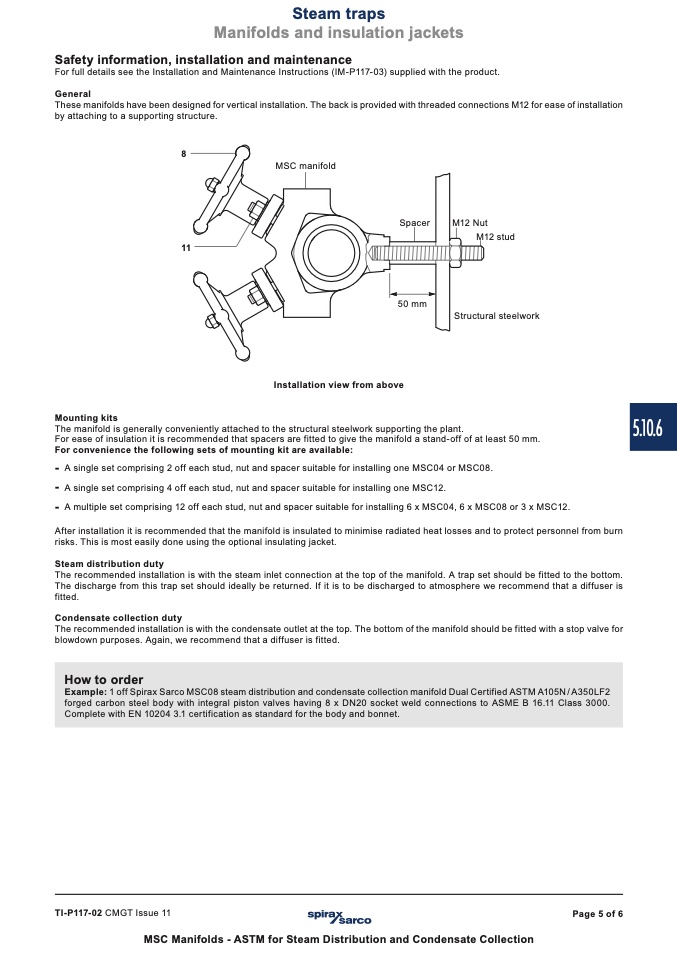

Installation view from above

The manifold is generally conveniently attached to the structural steelwork supporting the plant.

For ease of insulation it is recommended that spacers are fitted to give the manifold a stand-off of at least 50 mm.

For convenience the following sets of mounting kit are available:

A single set comprising 2 off each stud, nut and spacer suitable for installing one MSC04 or MSC08.

A single set comprising 4 off each stud, nut and spacer suitable for installing one MSC12.

A multiple set comprising 12 off each stud, nut and spacer suitable for installing 6 x MSC04, 6 x MSC08 or 3 x MSC12.

After installation it is recommended that the manifold is insulated to minimise radiated heat losses and to protect personnel from burn

risks. This is most easily done using the optional insulating jacket.

Steam distribution duty

The recommended installation is with the steam inlet connection at the top of the manifold. A trap set should be fitted to the bottom.

The discharge from this trap set should ideally be returned. If it is to be discharged to atmosphere we recommend that a diffuser is

fitted.

Condensate collection duty

The recommended installation is with the condensate outlet at the top. The bottom of the manifold should be fitted with a stop valve for

blowdown purposes. Again, we recommend that a diffuser is fitted.

50 mm

Structural steelwork

Example: 1 off Spirax Sarco MSC08 steam distribution and condensate collection manifold Dual Certified ASTM A105N / A350LF2

forged carbon steel body with integral piston valves having 8 x DN20 socket weld connections to ASME B 16.11 Class 3000.

Complete with EN 10204 3.1 certification as standard for the body and bonnet.
