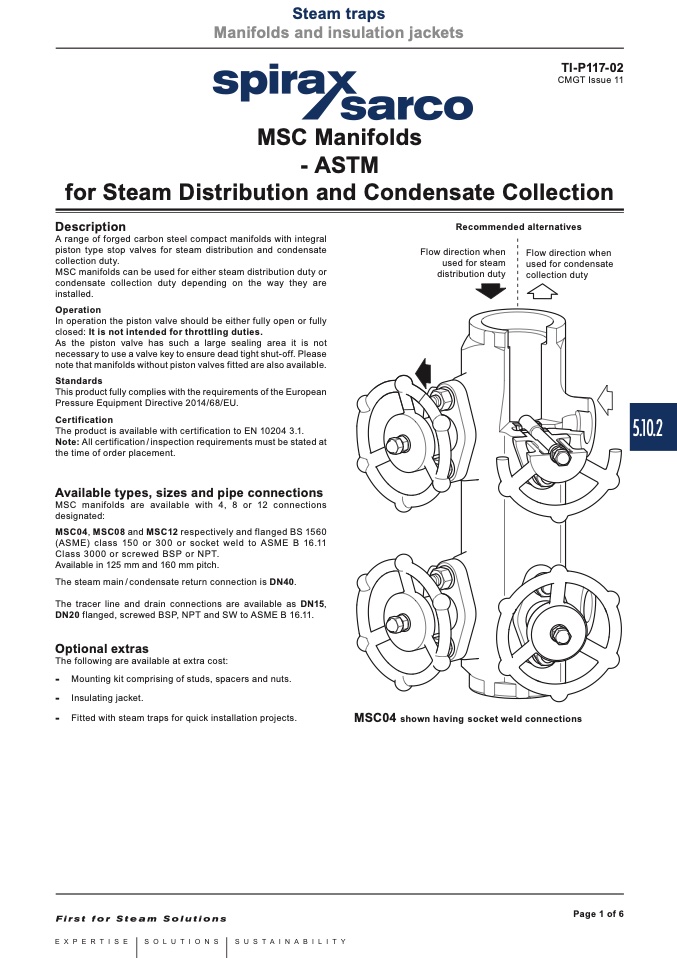

Steam traps

Local regulations may restrict the use of this product to below the conditions quoted.

Manifolds and insulation jackets

In the interests of development and improvement of the product, we reserve the right to change the specification without notice. © Copyright 2017

TI-P117-02

CMGT Issue 11

MSC Manifolds

- ASTM

for Steam Distribution and Condensate Collection

Description

A range of forged carbon steel compact manifolds with integral

piston type stop valves for steam distribution and condensate

collection duty.

MSC manifolds can be used for either steam distribution duty or

condensate collection duty depending on the way they are

installed.

Operation

In operation the piston valve should be either fully open or fully

closed: It is not intended for throttling duties.

As the piston valve has such a large sealing area it is not

necessary to use a valve key to ensure dead tight shut-off. Please

note that manifolds without piston valves fitted are also available.

Standards

This product fully complies with the requirements of the European

Pressure Equipment Directive 2014/68/EU.

Certification

The product is available with certification to EN 10204 3.1.

Note: All certification / inspection requirements must be stated at

the time of order placement.

Available types, sizes and pipe connections

MSC manifolds are available with 4, 8 or 12 connections

designated:

MSC04, MSC08 and MSC12 respectively and flanged BS 1560

(ASME) class 150 or 300 or socket weld to ASME B 16.11

Class 3000 or screwed BSP or NPT.

Available in 125 mm and 160 mm pitch.

The steam main / condensate return connection is DN40.

The tracer line and drain connections are available as DN15,

DN20 flanged, screwed BSP, NPT and SW to ASME B 16.11.

Optional extras

The following are available at extra cost:

-

Mounting kit comprising of studs, spacers and nuts.

-

Insulating jacket.

-

Fitted with steam traps for quick installation projects.

Recommended alternatives

Flow direction when

used for steam

distribution duty

Flow direction when

used for condensate

collection duty

MSC04 shown having socket weld connections

Page 1 of 6

5.10.2
