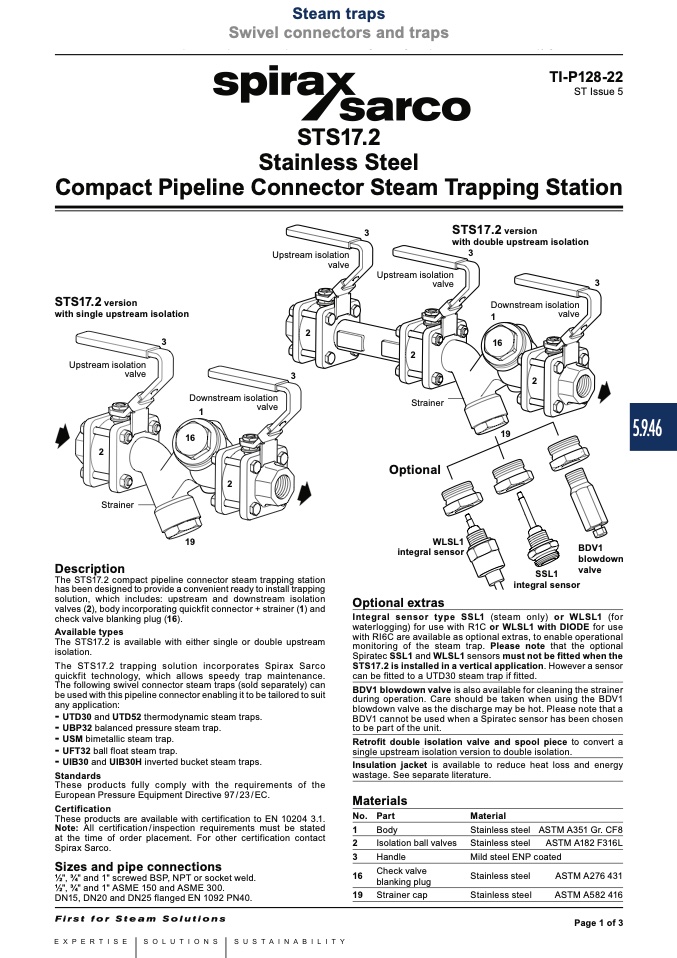

Steam traps

STS17.2

Stainless Steel

Compact Pipeline Connector Steam Trapping Station

STS17.2 version

with single upstream isolation

Downstream isolation

Upstream isolation

valve

2

Strainer

Description

3

2

Strainer

Optional

WLSL1

integral sensor

Optional extras

2

19

Swivel connectors and traps

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.

© Copyright 2014

Downstream isolation

1

16

2

19

The STS17.2 compact pipeline connector steam trapping station

has been designed to provide a convenient ready to install trapping

solution, which includes: upstream and downstream isolation

valves (2), body incorporating quickfit connector + strainer (1) and

check valve blanking plug (16).

Available types

The STS17.2 is available with either single or double upstream

isolation.

blowdown

SSL1

valve

integral sensor

The STS17.2 trapping solution incorporates Spirax Sarco

quickfit technology, which allows speedy trap maintenance.

The following swivel connector steam traps (sold separately) can

be used with this pipeline connector enabling it to be tailored to suit

any application:

Integral sensor type SSL1 (steam only) or WLSL1 (for

waterlogging) for use with R1C or WLSL1 with DIODE for use

with RI6C are available as optional extras, to enable operational

monitoring of the steam trap. Please note that the optional

Spiratec SSL1 and WLSL1 sensors must not be fitted when the

STS17.2 is installed in a vertical application. However a sensor

can be fitted to a UTD30 steam trap if fitted.

BDV1 blowdown valve is also available for cleaning the strainer

during operation. Care should be taken when using the BDV1

blowdown valve as the discharge may be hot. Please note that a

BDV1 cannot be used when a Spiratec sensor has been chosen

to be part of the unit.

Retrofit double isolation valve and spool piece to convert a

single upstream isolation version to double isolation.

Insulation jacket is available to reduce heat loss and energy

wastage. See separate literature.

- UTD30

and UTD52 thermodynamic steam traps.

- UBP32

balanced pressure steam trap.

- USM

bimetallic steam trap.

- UFT32

ball float steam trap.

- UIB30

and UIB30H inverted bucket steam traps.

Standards

These products fully comply with the requirements of the

European Pressure Equipment Directive 97 / 23 / EC.

Certification

These products are available with certification to EN 10204 3.1.

Note: All certification / inspection requirements must be stated

at the time of order placement. For other certification contact

Spirax Sarco.

Sizes and pipe connections

1⁄2", 3⁄4" and 1" screwed BSP, NPT or socket weld.

1⁄2", 3⁄4" and 1" ASME 150 and ASME 300.

DN15, DN20 and DN25 flanged EN 1092 PN40.

Materials

No. Part

1

Body

2

Isolation ball valves

3

Handle

16

Check valve

blanking plug

19 Strainer cap

Material

Stainless steel ASTM A351 Gr. CF8

Stainless steel ASTM A182 F316L

Mild steel ENP coated

Stainless steel

ASTM A276 431

Stainless steel

ASTM A582 416

valve

Upstream isolation

valve

Upstream isolation

valve

1

3

2

16

valve

3

STS17.2 version

with double upstream isolation

3

TI-P128-22

ST Issue 5

BDV1

3

Page 1 of 3

5.9.46
