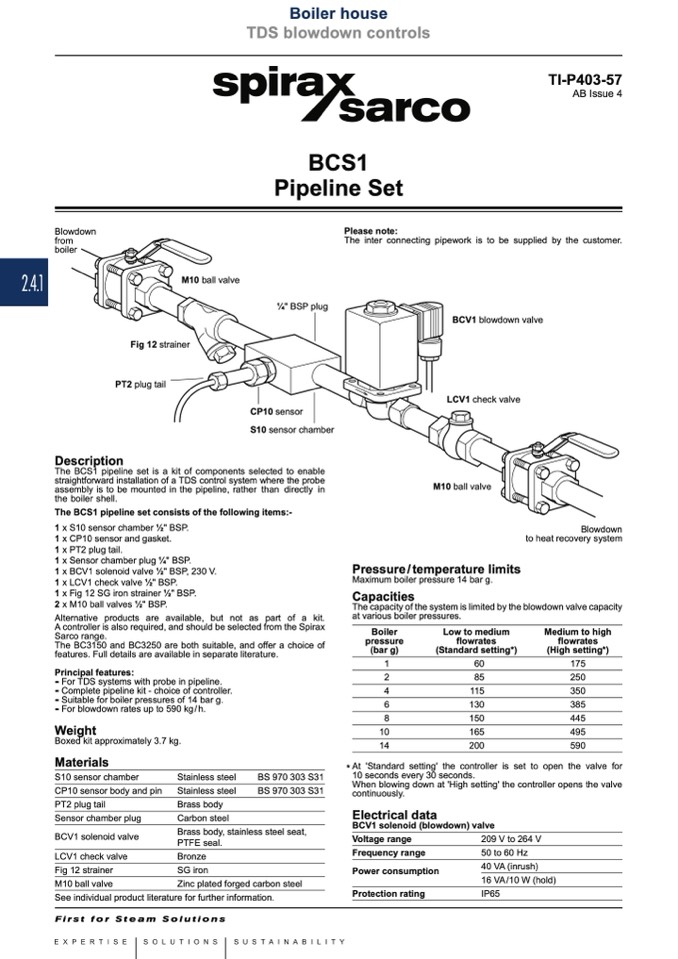

Boiler house

TDS blowdown controls

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice. © Copyright 2014

2.4.1

TI-P403-57

AB Issue 4

The inter connecting pipework is to be supplied by the customer.

BCV1 blowdown valve

BCS1

Pipeline Set

1⁄4" BSP plug

CP10 sensor

S10 sensor chamber

The BCS1 pipeline set is a kit of components selected to enable

straightforward installation of a TDS control system where the probe

assembly is to be mounted in the pipeline, rather than directly in

the boiler shell.

The BCS1 pipeline set consists of the following items:-

1 x S10 sensor chamber 1⁄2" BSP.

1 x CP10 sensor and gasket.

1 x PT2 plug tail.

1 x Sensor chamber plug 1⁄4" BSP.

1 x BCV1 solenoid valve 1⁄2" BSP, 230 V.

1 x LCV1 check valve 1⁄2" BSP.

1 x Fig 12 SG iron strainer 1⁄2" BSP.

2 x M10 ball valves 1⁄2" BSP.

Alternative products are available, but not as part of a kit.

A controller is also required, and should be selected from the Spirax

Sarco range.

The BC3150 and BC3250 are both suitable, and offer a choice of

features. Full details are available in separate literature.

Blowdown

from

boiler

Please note:

M10 ball valve

Fig 12 strainer

PT2 plug tail

Description

LCV1 check valve

M10 ball valve

Blowdown

to heat recovery system

The capacity of the system is limited by the blowdown valve capacity

at various boiler pressures.

Pressure/temperature limits

Maximum boiler pressure 14 bar g.

Capacities

Principal features:

-

For TDS systems with probe in pipeline.

-

Complete pipeline kit - choice of controller.

-

Suitable for boiler pressures of 14 bar g.

-

For blowdown rates up to 590 kg / h.

Weight

Boiler

pressure

(bar g)

1

2

4

6

8

10

14

Low to medium

flowrates

(Standard setting*)

60

85

115

130

150

165

200

Medium to high

flowrates

(High setting*)

175

250

350

385

445

495

590

Boxed kit approximately 3.7 kg.

Materials

S10 sensor chamber

CP10 sensor body and pin

PT2 plug tail

Sensor chamber plug

BCV1 solenoid valve

Stainless steel

Stainless steel

Brass body

Carbon steel

BS 970 303 S31

BS 970 303 S31

* At 'Standard setting' the controller is set to open the valve for

10 seconds every 30 seconds.

When blowing down at 'High setting' the controller opens the valve

continuously.

Electrical data

BCV1 solenoid (blowdown) valve

Brass body, stainless steel seat,

PTFE seal.

Bronze

SG iron

Zinc plated forged carbon steel

Voltage range

Frequency range

Power consumption

Protection rating

209 V to 264 V

50 to 60 Hz

40 VA (inrush)

16 VA/10 W (hold)

IP65

LCV1 check valve

Fig 12 strainer

M10 ball valve

See individual product literature for further information.
