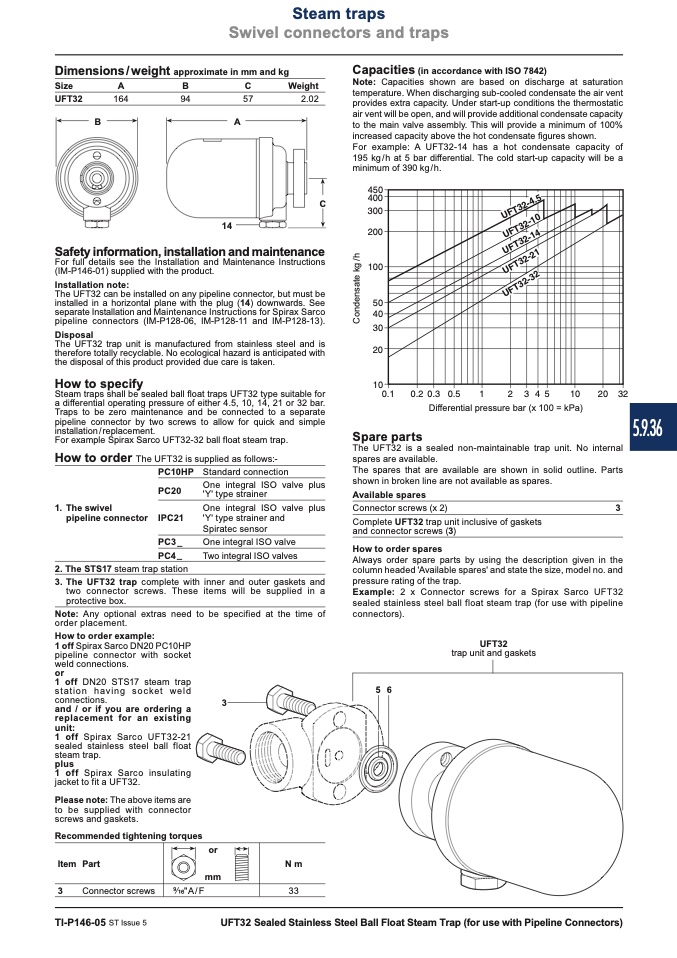

Steam traps

Swivel connectors and traps

Dimensions / weight approximate in mm and kg

Capacities (in accordance with ISO 7842)

Note: Capacities shown are based on discharge at saturation

temperature. When discharging sub-cooled condensate the air vent

provides extra capacity. Under start-up conditions the thermostatic

air vent will be open, and will provide additional condensate capacity

to the main valve assembly. This will provide a minimum of 100%

increased capacity above the hot condensate figures shown.

For example: A UFT32-14 has a hot condensate capacity of

195 kg/h at 5 bar differential. The cold start-up capacity will be a

minimum of 390 kg/h.

��

�

��

�

��

Differential pressure bar (x 100 = kPa)

Spare parts

The UFT32 is a sealed non-maintainable trap unit. No internal

spares are available.

The spares that are available are shown in solid outline. Parts

shown in broken line are not available as spares.

Available spares

Connector screws (x 2)

Complete UFT32 trap unit inclusive of gaskets

and connector screws (3)

How to order spares

Always order spare parts by using the description given in the

column headed 'Available spares' and state the size, model no. and

pressure rating of the trap.

Example: 2 x Connector screws for a Spirax Sarco UFT32

sealed stainless steel ball float steam trap (for use with pipeline

connectors).

Size

UFT32

164

Weight

2.02

Safety information, installation and maintenance

For full details see the Installation and Maintenance Instructions

(IM-P146-01) supplied with the product.

The UFT32 can be installed on any pipeline connector, but must be

installed in a horizontal plane with the plug (14) downwards. See

separate Installation and Maintenance Instructions for Spirax Sarco

pipeline connectors (IM-P128-06, IM-P128-11 and IM-P128-13).

Disposal

The UFT32 trap unit is manufactured from stainless steel and is

therefore totally recyclable. No ecological hazard is anticipated with

the disposal of this product provided due care is taken.

Steam traps shall be sealed ball float traps UFT32 type suitable for

a differential operating pressure of either 4.5, 10, 14, 21 or 32 bar.

Traps to be zero maintenance and be connected to a separate

pipeline connector by two screws to allow for quick and simple

installation / replacement.

Installation note:

How to specify

For example Spirax Sarco UFT32-32 ball float steam trap.

How to order

The UFT32 is supplied as follows:-

5.9.36

PC10HP

PC20

IPC21

PC3 _

PC4_

2. The STS17 steam trap station

Standard connection

One integral ISO valve plus

'Y' type strainer

One integral ISO valve plus

'Y' type strainer and

Spiratec sensor

One integral ISO valve

Two integral ISO valves

1. The swivel

pipeline connector

3. The UFT32 trap complete with inner and outer gaskets and

two connector screws. These items will be supplied in a

protective box.

Note: Any optional extras need to be specified at the time of

order placement.

How to order example:

1 off Spirax Sarco DN20 PC10HP

pipeline connector with socket

weld connections.

1 off DN20 STS17 steam trap

station having socket weld

connections.

and / or if you are ordering a

replacement for an existing

unit:

1 off Spirax Sarco UFT32-21

sealed stainless steel ball float

steam trap.

plus

1 off Spirax Sarco insulating

jacket to fit a UFT32.

Please note: The above items are

to be supplied with connector

screws and gaskets.

Recommended tightening torques

UFT32

trap unit and gaskets

Item Part

Connector screws

N m

"A/F
