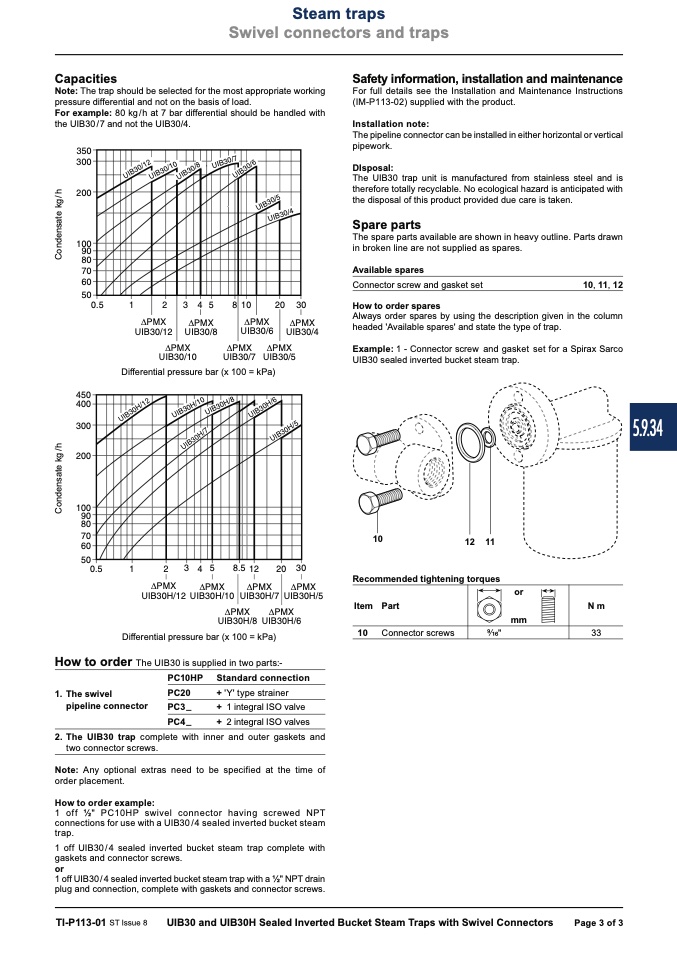

Spirax Sarco - Catalogo Agosto 2017

Steam traps

Swivel connectors and traps

Capacities

Note: The trap should be selected for the most appropriate working

pressure differential and not on the basis of load.

For example: 80 kg/h at 7 bar differential should be handled with

the UIB30/7 and not the UIB30/4.

��

�

��

�

��

�

��

Safety information, installation and maintenance

For full details see the Installation and Maintenance Instructions

(IM-P113-02) supplied with the product.

Installation note:

The pipeline connector can be installed in either horizontal or vertical

pipework.

DIsposal:

The UIB30 trap unit is manufactured from stainless steel and is

therefore totally recyclable. No ecological hazard is anticipated with

the disposal of this product provided due care is taken.

Spare parts

The spare parts available are shown in heavy outline. Parts drawn

in broken line are not supplied as spares.

Available spares

10, 11, 12

Always order spares by using the description given in the column

headed 'Available spares' and state the type of trap.

Example: 1 - Connector screw and gasket set for a Spirax Sarco

UIB30 sealed inverted bucket steam trap.

Connector screw and gasket set

How to order spares

��

Differential pressure bar (x 100 = kPa)

��

12 11

��

�

��

�

��

�

��

�

��

Differential pressure bar (x 100 = kPa)

How to order

The UIB30 is supplied in two parts:-

PC10HP Standard connection

Recommended tightening torques

Item Part

10 Connector screws

N m

PC20

+ 'Y' type strainer

pipeline connector

PC3_

+ 1 integral ISO valve

1. The swivel

2. The UIB30 trap complete with inner and outer gaskets and

PC4_

+ 2 integral ISO valves

Note: Any optional extras need to be specified at the time of

two connector screws.

order placement.

How to order example:

1 off 1⁄2" PC10HP swivel connector having screwed NPT

connections for use with a UIB30 / 4 sealed inverted bucket steam

trap.

1 off UIB30/4 sealed inverted bucket steam trap complete with

gaskets and connector screws.

1 off UIB30 / 4 sealed inverted bucket steam trap with a 1⁄2" NPT drain

plug and connection, complete with gaskets and connector screws.

TI-P113-01 ST Issue 8

UIB30 and UIB30H Sealed Inverted Bucket Steam Traps with Swivel Connectors

Page 3 of 3
