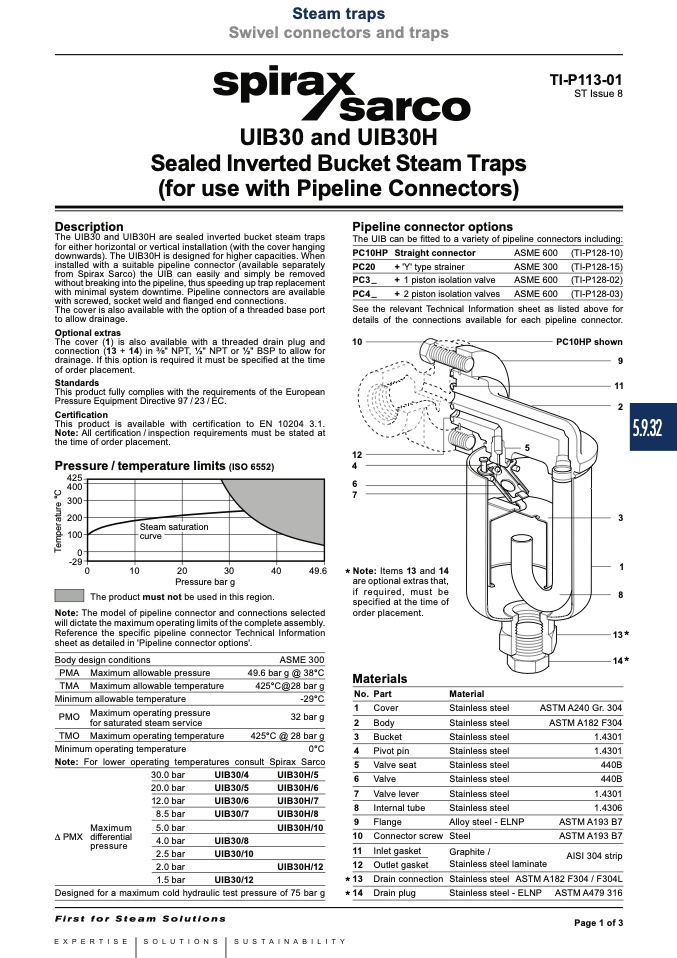

Spirax Sarco - Catalogo Agosto 2017

Steam traps

Swivel connectors and traps

UIB30 and UIB30H

Sealed Inverted Bucket Steam Traps

(for use with Pipeline Connectors)

Pipeline connector options

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.

TI-P113-01

ST Issue 8

Description

The UIB30 and UIB30H are sealed inverted bucket steam traps

for either horizontal or vertical installation (with the cover hanging

downwards). The UIB30H is designed for higher capacities. When

installed with a suitable pipeline connector (available separately

from Spirax Sarco) the UIB can easily and simply be removed

without breaking into the pipeline, thus speeding up trap replacement

with minimal system downtime. Pipeline connectors are available

with screwed, socket weld and flanged end connections.

The UIB can be fitted to a variety of pipeline connectors including:

PC10HP Straight connector

PC20

+ 'Y' type strainer

PC3_

+ 1 piston isolation valve

PC4_

+ 2 piston isolation valves

ASME 600

ASME 300

ASME 600

(TI-P128-10)

(TI-P128-15)

(TI-P128-02)

(TI-P128-03)

The cover is also available with the option of a threaded base port

to allow drainage.

Optional extras

The cover (1) is also available with a threaded drain plug and

connection (13 + 14) in " NPT, 1⁄2" NPT or 1⁄2" BSP to allow for

drainage. If this option is required it must be specified at the time

of order placement.

This product fully complies with the requirements of the European

Pressure Equipment Directive 97 / 23 / EC.

This product is available with certification to EN 10204 3.1.

Note: All certification / inspection requirements must be stated at

the time of order placement.

See the relevant Technical Information sheet as listed above for

details of the connections available for each pipeline connector.

Standards

*Note:

Items 13 and 14

are optional extras that,

if required, must be

specified at the time of

order placement.

PC10HP shown

*

ASTM A240 Gr. 304

ASTM A182 F304

1.4301

440B

1.4301

1.4306

ASTM A193 B7

Certification

Pressure / temperature limits (ISO 6552)

��

Steam saturation

curve

Pressure bar g

The product must not be used in this region.

Note: The model of pipeline connector and connections selected

will dictate the maximum operating limits of the complete assembly.

Reference the specific pipeline connector Technical Information

sheet as detailed in 'Pipeline connector options'.

Body design conditions

ASME 300

PMA Maximum allowable pressure

49.6 bar g @ 38°C

TMA Maximum allowable temperature

425°C@28 bar g

Minimum allowable temperature

-29°C

PMO

Maximum operating pressure

32 bar g

for saturated steam service

TMO Maximum operating temperature

425°C @ 28 bar g

Minimum operating temperature

0°C

Note: For lower operating temperatures consult Spirax Sarco

Materials

No. Part

1 Cover

2 Body

3 Bucket

4 Pivot pin

5 Valve seat

6 Valve

7 Valve lever

8 Internal tube

9 Flange

10 Connector screw

11 Inlet gasket

12 Outlet gasket

13 Drain connection

14 Drain plug

Material

Stainless steel

Alloy steel - ELNP

Steel

D PMX

Maximum

differential

pressure

30.0 bar

UIB30/4

20.0 bar

UIB30/5

12.0 bar

UIB30/6

8.5 bar

UIB30/7

5.0 bar

4.0 bar

UIB30/8

2.5 bar

UIB30/10

2.0 bar

UIB30H/5

UIB30H/6

UIB30H/7

UIB30H/8

UIB30H/10

UIB30H/12

Graphite /

Stainless steel laminate

AISI 304 strip

1.5 bar

UIB30/12

Designed for a maximum cold hydraulic test pressure of 75 bar g

*

Stainless steel ASTM A182 F304 / F304L

Stainless steel - ELNP ASTM A479 316

Page 1 of 3
