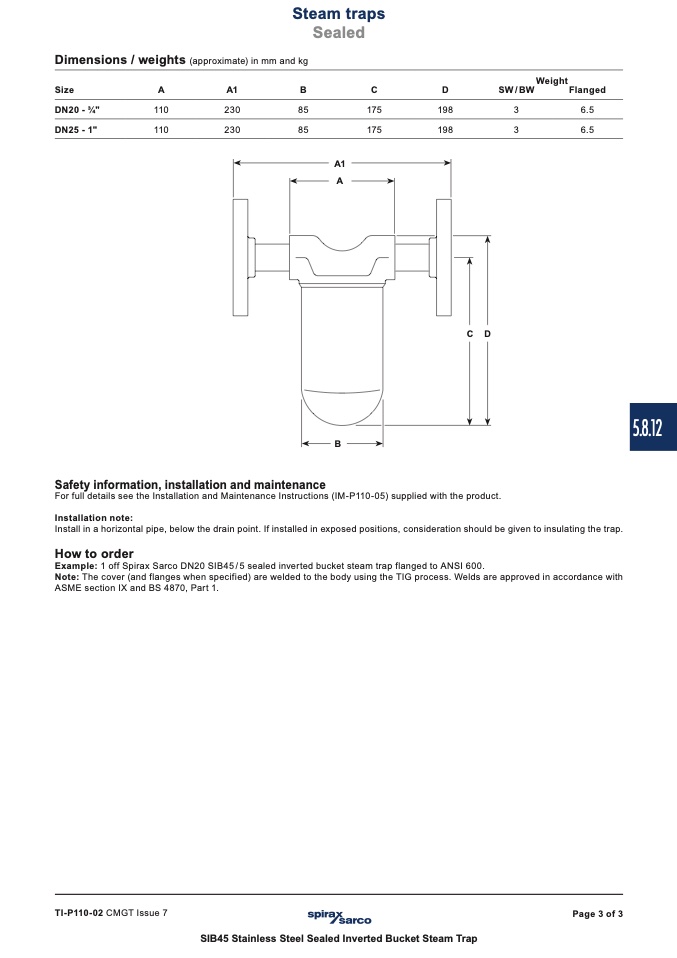

Steam traps

Sealed

Dimensions / weights

(approximate) in mm and kg

Size

A

A1

B

C

D

SW/BW

Weight

Flanged

DN20 - 3⁄4"

110

230

85

DN25 - 1"

110

230

85

175

198

175

198

3

6.5

3

6.5

Safety information, installation and maintenance

For full details see the Installation and Maintenance Instructions (IM-P110-05) supplied with the product.

Installation note:

A1

A

C

D

B

Install in a horizontal pipe, below the drain point. If installed in exposed positions, consideration should be given to insulating the trap.

How to order

Example: 1 off Spirax Sarco DN20 SIB45/5 sealed inverted bucket steam trap flanged to ANSI 600.

Note: The cover (and flanges when specified) are welded to the body using the TIG process. Welds are approved in accordance with

ASME section IX and BS 4870, Part 1.

5.8.12

TI-P110-02 CMGT Issue 7

Page 3 of 3

SIB45 Stainless Steel Sealed Inverted Bucket Steam Trap
