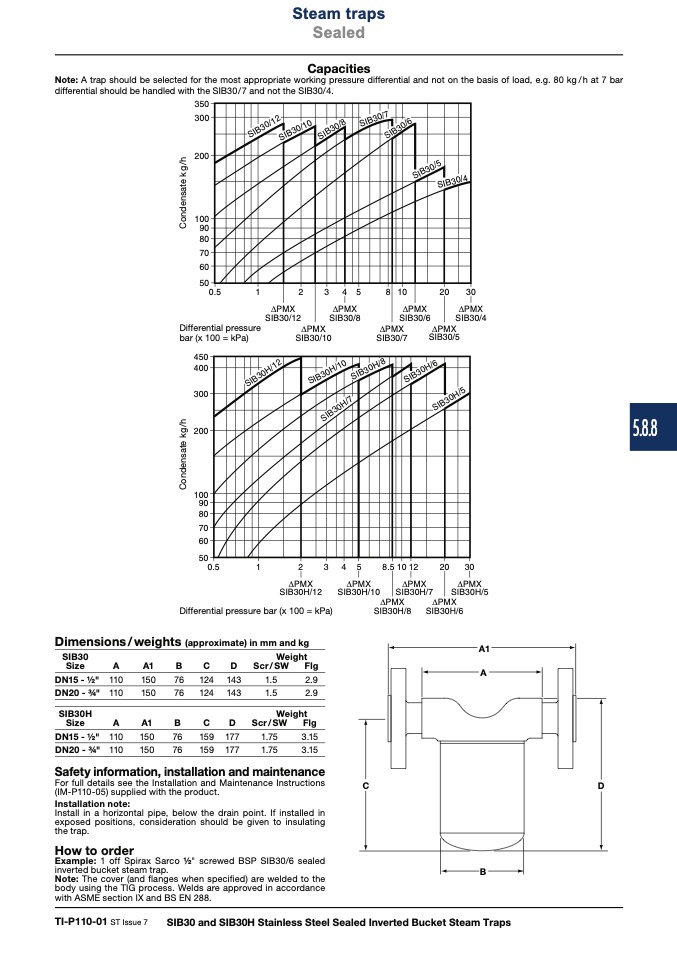

Spirax Sarco - Catalogo Agosto 2017

Steam traps

Sealed

Capacities

Note: A trap should be selected for the most appropriate working pressure differential and not on the basis of load, e.g. 80 kg / h at 7 bar

differential should be handled with the SIB30/7 and not the SIB30/4.

��

�

��

�

��

Differential pressure

��

bar (x 100 = kPa)

��

Differential pressure bar (x 100 = kPa)

Dimensions/weights (approximate) in mm and kg

��

SIB30

Size

DN15 - 1⁄2"

DN20 - 3⁄4"

SIB30H

Size

DN15 - 1⁄2"

DN20 - 3⁄4"

Weight

Scr/SW

Flg

110

150

124 143

1.5

2.9

110

150

124 143

1.5

2.9

Weight

Scr/SW

Flg

110

150

159 177

1.75

3.15

110

150

159 177

1.75

3.15

Safety information, installation and maintenance

For full details see the Installation and Maintenance Instructions

(IM-P110-05) supplied with the product.

Installation note:

Install in a horizontal pipe, below the drain point. If installed in

exposed positions, consideration should be given to insulating

the trap.

How to order

Example: 1 off Spirax Sarco 1⁄2" screwed BSP SIB30/6 sealed

inverted bucket steam trap.

Note: The cover (and flanges when specified) are welded to the

body using the TIG process. Welds are approved in accordance

with ASME section IX and BS EN 288.

TI-P110-01 ST Issue 7

SIB30 and SIB30H Stainless Steel Sealed Inverted Bucket Steam Traps
