Steam traps

Thermodynamic

5.7.39

or

mm

36 A/F

Spare parts

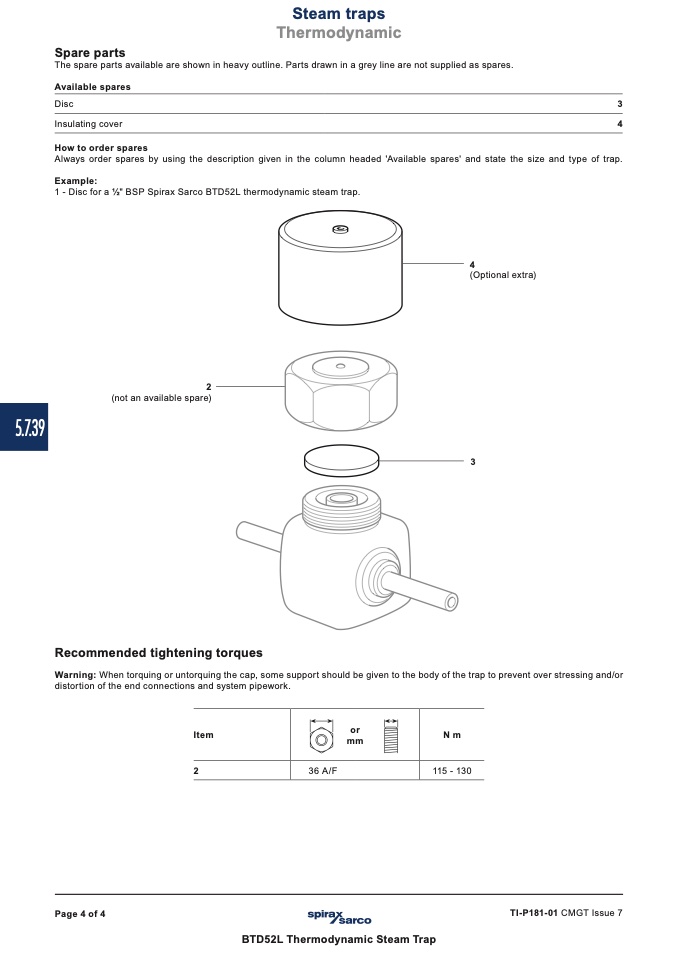

The spare parts available are shown in heavy outline. Parts drawn in a grey line are not supplied as spares.

Available spares

Disc

3

Insulating cover

4

How to order spares

Always order spares by using the description given in the column headed 'Available spares' and state the size and type of trap.

Example:

1 - Disc for a 1⁄2" BSP Spirax Sarco BTD52L thermodynamic steam trap.

2

(not an available spare)

4

(Optional extra)

3

Recommended tightening torques

Warning: When torquing or untorquing the cap, some support should be given to the body of the trap to prevent over stressing and/or

distortion of the end connections and system pipework.

Item

Nm

2

115 - 130

Page 4 of 4

TI-P181-01 CMGT Issue 7

BTD52L Thermodynamic Steam Trap
