5.7.33

A

B

Steam

saturation

curve

C

exceed 42 bar g.

TD52M and TD52MLC

TD52MA and TD52MLCA

Materials

No.

Part

1

Body

2

Cap

3

Disc

4

Insulating cover

(optional extra)

Steam traps

Thermodynamic

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.

© Copyright 2013

Anti-air-binding disc

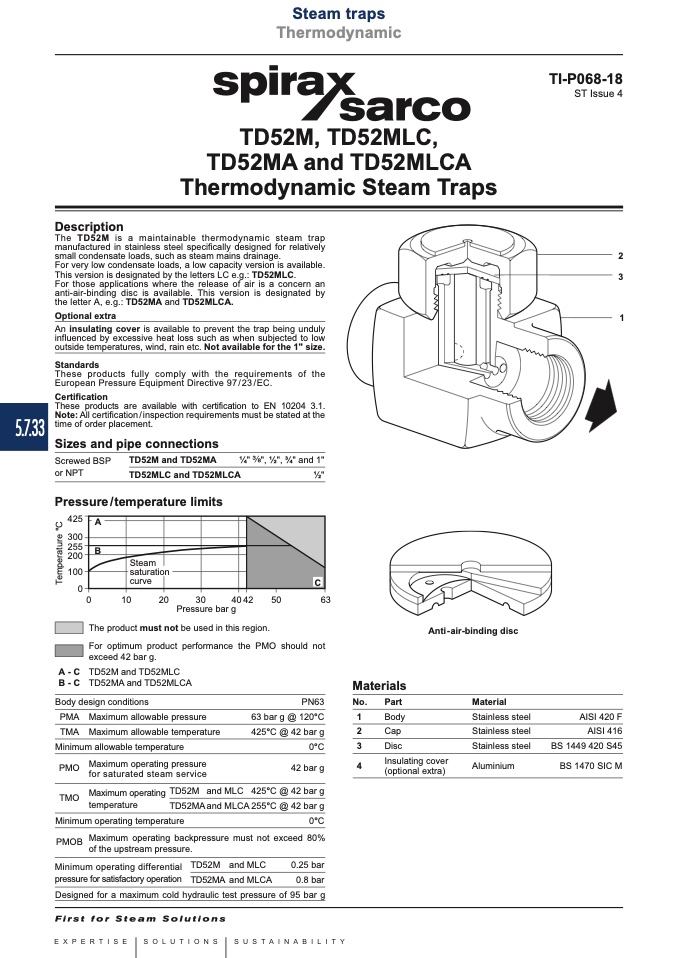

TI-P068-18

ST Issue 4

TD52M, TD52MLC,

TD52MA and TD52MLCA

Thermodynamic Steam Traps

Description

The TD52M is a maintainable thermodynamic steam trap

manufactured in stainless steel specifically designed for relatively

small condensate loads, such as steam mains drainage.

For very low condensate loads, a low capacity version is available.

This version is designated by the letters LC e.g.: TD52MLC.

For those applications where the release of air is a concern an

anti-air-binding disc is available. This version is designated by

the letter A, e.g.: TD52MA and TD52MLCA.

Optional extra

An insulating cover is available to prevent the trap being unduly

influenced by excessive heat loss such as when subjected to low

outside temperatures, wind, rain etc. Not available for the 1" size.

These products fully comply with the requirements of the

European Pressure Equipment Directive 97/23/EC.

These products are available with certification to EN 10204 3.1.

Note: All certification / inspection requirements must be stated at the

time of order placement.

Sizes and pipe connections

Screwed BSP

TD52M and TD52MA

1⁄4" ", 1⁄2", 3⁄4" and 1"

2

3

1

Standards

Certification

or NPT

TD52MLC and TD52MLCA

Pressure/temperature limits

425

300

255

200

100

0

A -C

B -C

1⁄2"

0

10

20

30

40 42

50

63

The product must not be used in this region.

For optimum product performance the PMO should not

Pressure bar g

Body design conditions

PMA Maximum allowable pressure

TMA Maximum allowable temperature

Minimum allowable temperature

PMO

Maximum operating pressure

for saturated steam service

TMO

Maximum operating TD52M and MLC

PN63

63 bar g @ 120°C

425°C @ 42 bar g

0°C

42 bar g

425°C @ 42 bar g

Material

Stainless steel

Stainless steel

Stainless steel

Aluminium

AISI 420 F

AISI 416

BS 1449 420 S45

BS 1470 SIC M

temperature

TD52MA and MLCA 255°C @ 42 bar g

Minimum operating temperature

0°C

PMOB

Maximum operating backpressure must not exceed 80%

of the upstream pressure.

Minimum operating differential TD52M and MLC

0.25 bar

pressure for satisfactory operation TD52MA and MLCA

0.8 bar

Designed for a maximum cold hydraulic test pressure of 95 bar g

T

e

m

p

e

r

a

t

u

r

e

°

C
