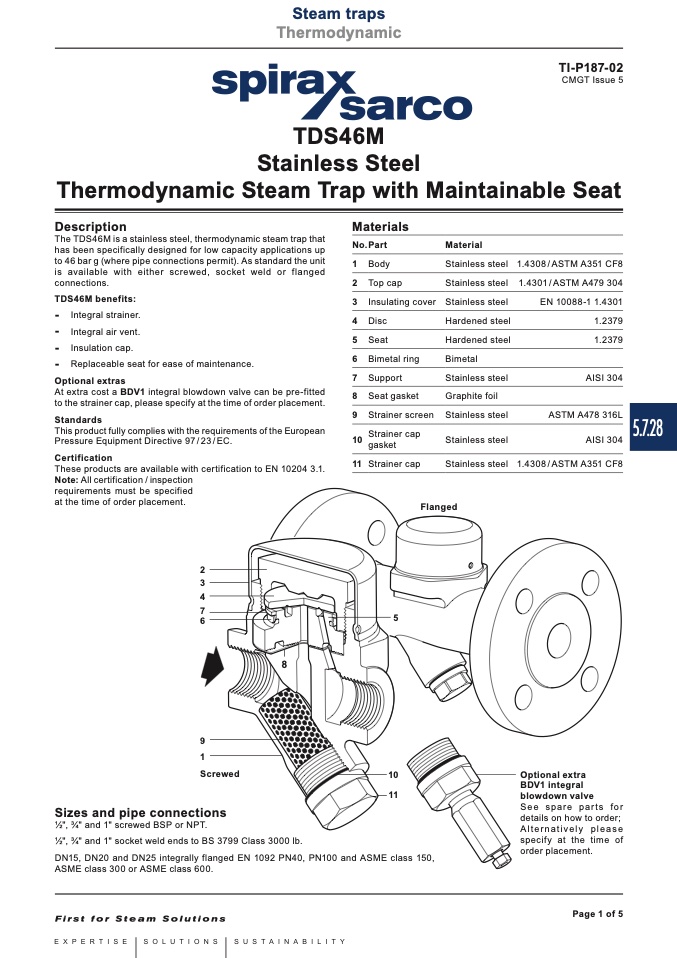

Steam traps
Local regulations may restrict the use of this product to below the conditions quoted.
Thermodynamic
In the interests of development and improvement of the product, we reserve the right to change the specification without notice. © Copyright 2017
TI-P187-02
CMGT Issue 5
TDS46M
Stainless Steel
Thermodynamic Steam Trap with Maintainable Seat
Description
Materials
The TDS46M is a stainless steel, thermodynamic steam trap that
has been specifically designed for low capacity applications up
to 46 bar g (where pipe connections permit). As standard the unit
is available with either screwed, socket weld or flanged
connections.
TDS46M benefits:
-
Integral strainer.
-
Integral air vent.
-
Insulation cap.
-
Replaceable seat for ease of maintenance.
Optional extras
At extra cost a BDV1 integral blowdown valve can be pre-fitted
to the strainer cap, please specify at the time of order placement.
Standards
This product fully complies with the requirements of the European
Pressure Equipment Directive 97 / 23 / EC.
Certification
These products are available with certification to EN 10204 3.1.
Note: All certification / inspection
requirements must be specified
at the time of order placement.
No.Part
1 Body
2 Top cap
3 Insulating cover
4 Disc
5 Seat
6 Bimetal ring
7 Support
8 Seat gasket
9 Strainer screen
10
Strainer cap
gasket
11 Strainer cap
Material
Stainless steel
Stainless steel
Stainless steel
Hardened steel
Hardened steel
Bimetal
Stainless steel
Graphite foil
Stainless steel
Stainless steel
Stainless steel
Flanged
1.4308 / ASTM A351 CF8
1.4301 / ASTM A479 304
EN 10088-1 1.4301
1.2379
1.2379
AISI 304
ASTM A478 316L
AISI 304
1.4308 / ASTM A351 CF8
2
3
4
7
6
9
5
8
1
Screwed
10
Optional extra
BDV1 integral
blowdown valve
See spare parts for
details on how to order;
Alternatively please
specify at the time of
order placement.
Sizes and pipe connections
1⁄2", 3⁄4" and 1" screwed BSP or NPT.
1⁄2", 3⁄4" and 1" socket weld ends to BS 3799 Class 3000 lb.
11
DN15, DN20 and DN25 integrally flanged EN 1092 PN40, PN100 and ASME class 150,
ASME class 300 or ASME class 600.
