TD42L

5.7.17

TD42H

TD42LA

", 1⁄2", 3⁄4" and

1⁄2", 3⁄4" and

", 1⁄2", 3⁄4" and

1"

1"

1"

screwed BSP or NPT

screwed BSP or NPT

screwed BSP or NPT

screwed BSP or NPT

Steam traps

Thermodynamic

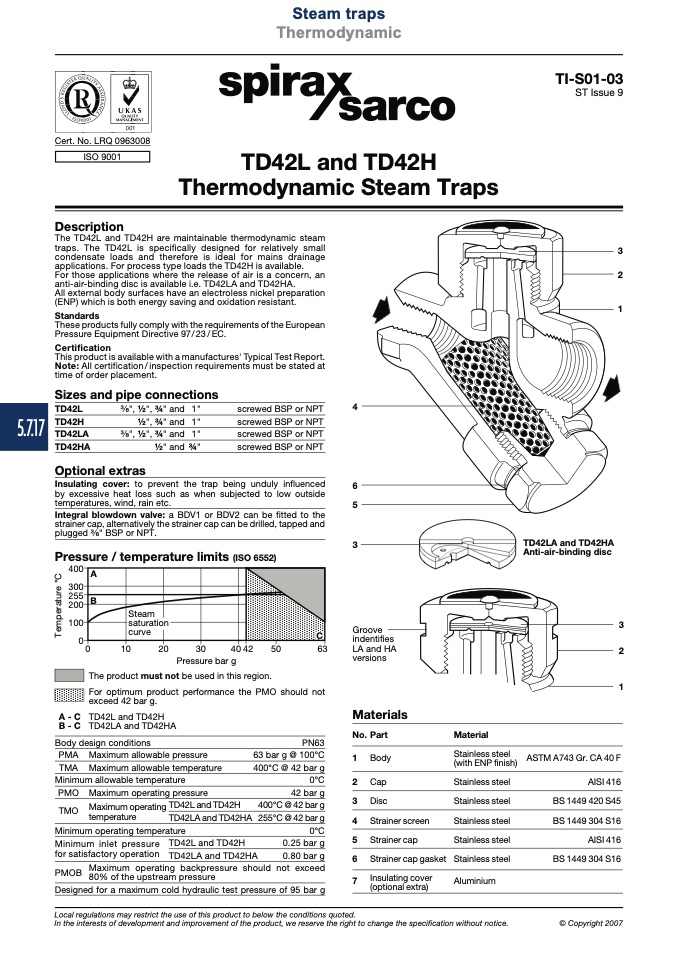

TD42L and TD42H

Thermodynamic Steam Traps

TI-S01-03

ST Issue 9

Cert. No. LRQ 0963008

ISO 9001

Description

The TD42L and TD42H are maintainable thermodynamic steam

traps. The TD42L is specifically designed for relatively small

condensate loads and therefore is ideal for mains drainage

applications. For process type loads the TD42H is available.

For those applications where the release of air is a concern, an

anti-air-binding disc is available i.e. TD42LA and TD42HA.

All external body surfaces have an electroless nickel preparation

(ENP) which is both energy saving and oxidation resistant.

Standards

These products fully comply with the requirements of the European

Pressure Equipment Directive 97/23/EC.

Certification

This product is available with a manufactures' Typical Test Report.

Note: All certification / inspection requirements must be stated at

time of order placement.

3

2

1

Sizes and pipe connections

4

6

5

3

Groove

indentifies

LA and HA

versions

Materials

No. Part

1 Body

2 Cap

3 Disc

4 Strainer screen

5 Strainer cap

6 Strainer cap gasket

7 Insulating cover

(optional extra)

TD42HA

Optional extras

1⁄2" and 3⁄4"

Insulating cover: to prevent the trap being unduly influenced

by excessive heat loss such as when subjected to low outside

temperatures, wind, rain etc.

Integral blowdown valve: a BDV1 or BDV2 can be fitted to the

strainer cap, alternatively the strainer cap can be drilled, tapped and

plugged " BSP or NPT.

TD42LA and TD42HA

Anti-air-binding disc

Pressure / temperature limits (ISO 6552)

���

A

���

���

B

���

Steam

���

saturation

�

curve

C

3

2

1

T

e

m

p

e

r

a

t

u

r

e

°

C

A -C

B- C

�

��

��

��

����

��

��

Pressure bar g

The product must not be used in this region.

For optimum product performance the PMO should not

exceed 42 bar g.

TD42L and TD42H

TD42LA and TD42HA

Material

Stainless steel

(with ENP finish)

Stainless steel

Stainless steel

Stainless steel

Stainless steel

Stainless steel

Aluminium

Body design conditions

PMA Maximum allowable pressure

TMA Maximum allowable temperature

Minimum allowable temperature

PMO Maximum operating pressure

TMO

Maximum operating TD42L and TD42H

PN63

63 bar g @ 100°C

400°C @ 42 bar g

0°C

42 bar g

400°C @ 42 bar g

temperature

TD42LAandTD42HA 255°C@42barg

ASTM A743 Gr. CA 40 F

AISI 416

BS 1449 420 S45

BS 1449 304 S16

AISI 416

BS 1449 304 S16

© Copyright 2007

Minimum operating temperature

Minimum inlet pressure TD42L and TD42H

for satisfactory operation TD42LA and TD42HA

0°C

0.25 bar g

0.80 bar g

PMOB

Maximum operating backpressure should not exceed

80% of the upstream pressure

Designed for a maximum cold hydraulic test pressure of 95 bar g

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.
