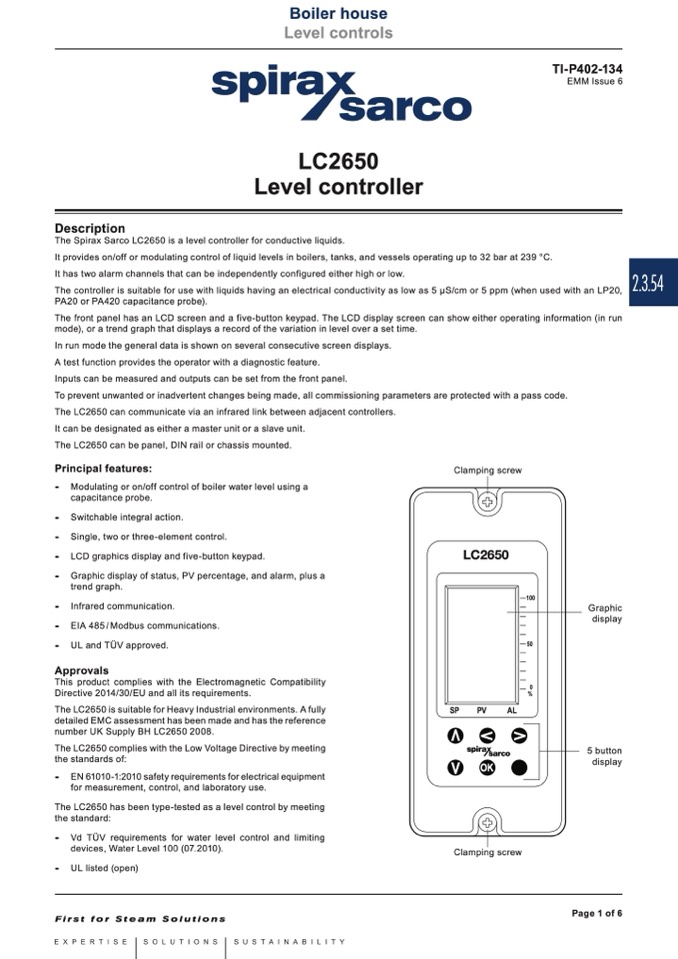

Boiler house
Local regulations may restrict the use of this product to below the conditions quoted.
Level controls
In the interests of development and improvement of the product, we reserve the right to change the specification without notice. © Copyright 2017
TI-P402-134
EMM Issue 6
LC2650
Level controller
Description
The Spirax Sarco LC2650 is a level controller for conductive liquids.
It provides on/off or modulating control of liquid levels in boilers, tanks, and vessels operating up to 32 bar at 239 °C.
It has two alarm channels that can be independently configured either high or low.
The controller is suitable for use with liquids having an electrical conductivity as low as 5 μS/cm or 5 ppm (when used with an LP20,
PA20 or PA420 capacitance probe).
The front panel has an LCD screen and a five-button keypad. The LCD display screen can show either operating information (in run
mode), or a trend graph that displays a record of the variation in level over a set time.
In run mode the general data is shown on several consecutive screen displays.
A test function provides the operator with a diagnostic feature.
Inputs can be measured and outputs can be set from the front panel.
To prevent unwanted or inadvertent changes being made, all commissioning parameters are protected with a pass code.
The LC2650 can communicate via an infrared link between adjacent controllers.
It can be designated as either a master unit or a slave unit.
The LC2650 can be panel, DIN rail or chassis mounted.
Principal features:
-
Modulating or on/off control of boiler water level using a
capacitance probe.
-
Switchable integral action.
-
Single, two or three-element control.
-
LCD graphics display and five-button keypad.
-
Graphic display of status, PV percentage, and alarm, plus a
trend graph.
-
Infrared communication.
-
EIA 485 / Modbus communications.
-
UL and TÜV approved.
Approvals
This product complies with the Electromagnetic Compatibility
Directive 2014/30/EU and all its requirements.
The LC2650 is suitable for Heavy Industrial environments. A fully
detailed EMC assessment has been made and has the reference
number UK Supply BH LC2650 2008.
The LC2650 complies with the Low Voltage Directive by meeting
the standards of:
-
EN 61010-1:2010 safety requirements for electrical equipment
for measurement, control, and laboratory use.
The LC2650 has been type-tested as a level control by meeting
the standard:
-
Vd TÜV requirements for water level control and limiting
devices, Water Level 100 (07.2010).
-
UL listed (open)
Clamping screw
LC2650
0
%
SP
PV
AL
OK
Clamping screw
100
50
Graphic
display
5 button
display
