Steam traps

Thermodynamic

5.7.11

ISO 9001

Steam

saturation

curve

TI-P068-17

ST Issue 5

MANAGEMENT

SYSTEMS

Cert. No. LRQ 0963008

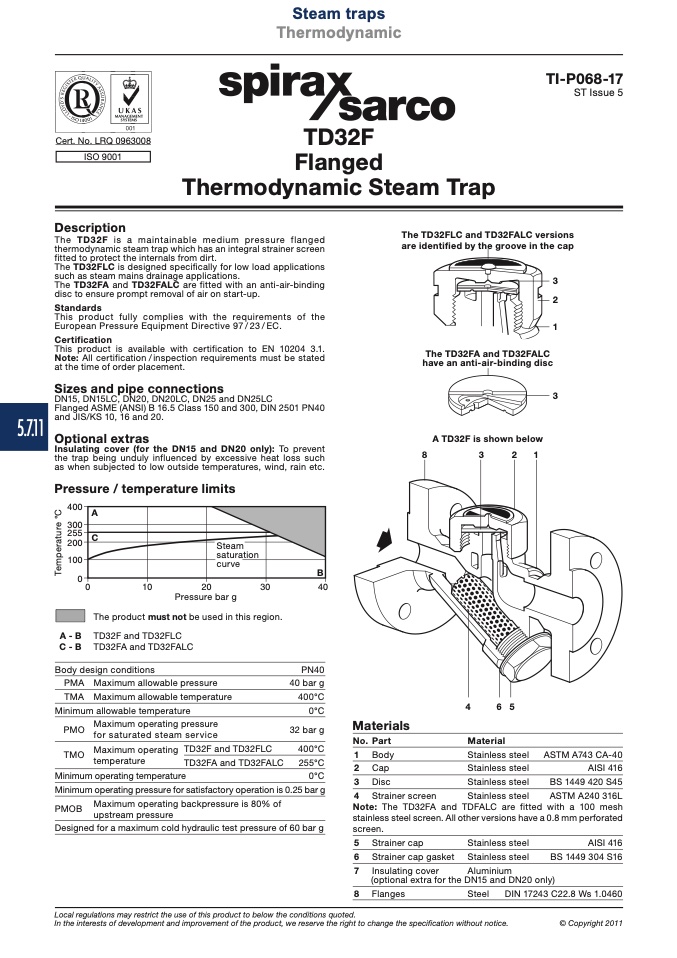

TD32F

Flanged

Thermodynamic Steam Trap

Description

The TD32F is a maintainable medium pressure flanged

thermodynamic steam trap which has an integral strainer screen

fitted to protect the internals from dirt.

The TD32FLC is designed specifically for low load applications

such as steam mains drainage applications.

The TD32FA and TD32FALC are fitted with an anti-air-binding

disc to ensure prompt removal of air on start-up.

Standards

This product fully complies with the requirements of the

European Pressure Equipment Directive 97 / 23 / EC.

Certification

This product is available with certification to EN 10204 3.1.

Note: All certification / inspection requirements must be stated

at the time of order placement.

Sizes and pipe connections

DN15, DN15LC, DN20, DN20LC, DN25 and DN25LC

Flanged ASME (ANSI) B 16.5 Class 150 and 300, DIN 2501 PN40

and JIS/KS 10, 16 and 20.

Optional extras

Insulating cover (for the DN15 and DN20 only): To prevent

the trap being unduly influenced by excessive heat loss such

as when subjected to low outside temperatures, wind, rain etc.

Pressure / temperature limits

��

The product must not be used in this region.

A-B TD32F and TD32FLC

C-B TD32FA and TD32FALC

Body design conditions

PMA Maximum allowable pressure

TMA Maximum allowable temperature

Minimum allowable temperature

PMO

Maximum operating pressure

for saturated steam service

The TD32FLC and TD32FALC versions

are identified by the groove in the cap

The TD32FA and TD32FALC

have an anti-air-binding disc

A TD32F is shown below

��

Pressure bar g

TMO

Maximum operating TD32F and TD32FLC

temperature

TD32FA and TD32FALC

PN40

40 bar g

400°C

0°C

32 bar g

400°C

Materials

No. Part

1 Body

2 Cap

3 Disc

Material

Stainless steel

ASTM A743 CA-40

AISI 416

BS 1449 420 S45

ASTM A240 316L

255°C

0°C

Minimum operating pressure for satisfactory operation is 0.25 bar g

Minimum operating temperature

PMOB

Maximum operating backpressure is 80% of

upstream pressure

Designed for a maximum cold hydraulic test pressure of 60 bar g

4 Strainer screen

Note: The TD32FA and TDFALC are fitted with a 100 mesh

stainless steel screen. All other versions have a 0.8 mm perforated

screen.

5 Strainer cap

6 Strainer cap gasket

Stainless steel

AISI 416

Stainless steel

BS 1449 304 S16

Aluminium

7 Insulating cover

(optional extra for the DN15 and DN20 only)

8 Flanges

Steel

DIN 17243 C22.8 Ws 1.0460

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.
