Steam traps

Inverted bucket

Capacities

1" / DN25

Differential pressure bar (x 100 = kPa)

Selection note: Traps should be selected for the most appropriate working pressure differential and not on the basis of load, For example;

DN25 HM34 with a load of 80 kg/h at 7 bar differential should be handled by an HM34/10 and not an HM34/5.

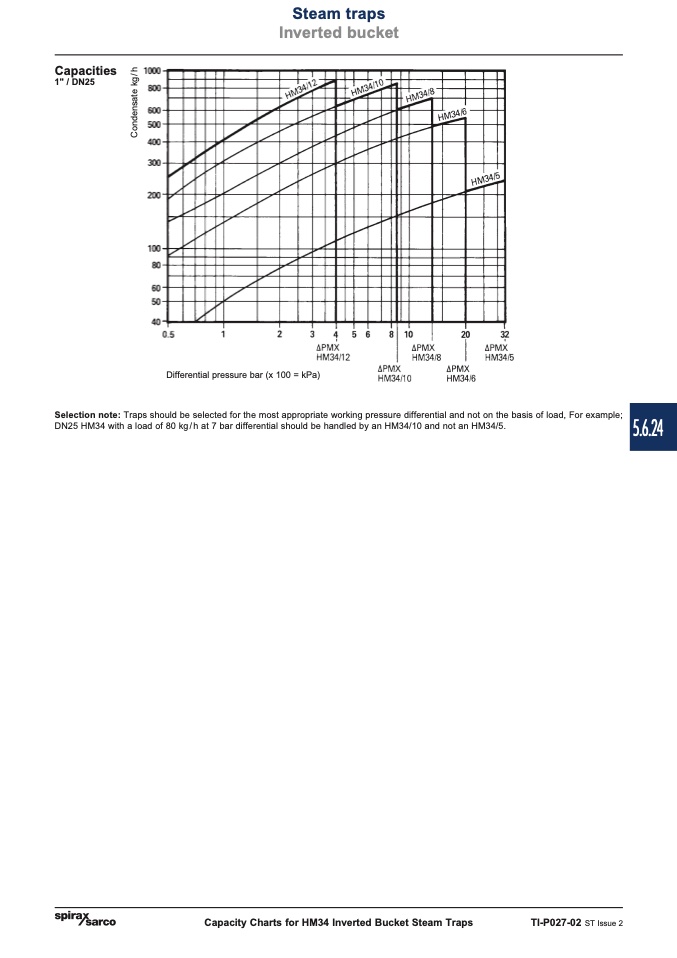

Capacity Charts for HM34 Inverted Bucket Steam Traps

TI-P027-02 ST Issue 2

5.6.24
