Steam traps

Inverted bucket

Capacities

See TI-P072-02 for full details of capacities.

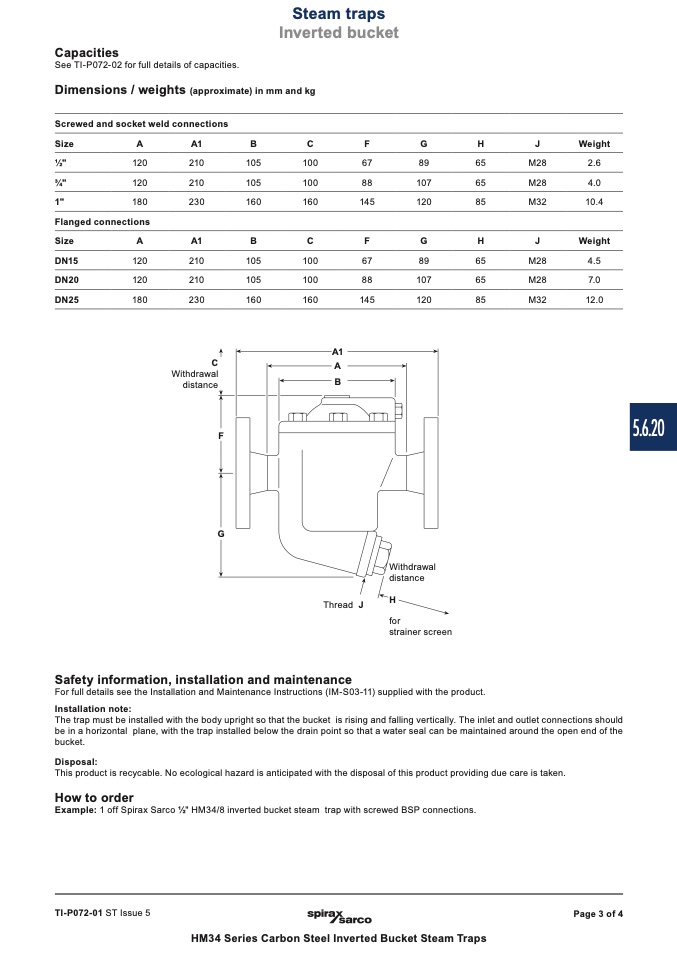

Dimensions / weights (approximate) in mm and kg

Screwed and socket weld connections

Size

A

A1

B

C

F

G

H

J

Weight

1⁄2"

120

3⁄4"

120

1"

180

Flanged connections

210

105

100

210

105

100

230

160

160

67

89

88

107

145

120

65

M28

2.6

65

M28

4.0

85

M32

10.4

Size

A

A1

B

C

F

G

H

J

Weight

DN15

120

210

DN20

120

210

DN25

180

230

Withdrawal

distance

105

100

105

100

160

160

67

89

88

107

145

120

65

M28

4.5

65

M28

7.0

85

M32

12.0

C

A1

A

B

F

G

Withdrawal

distance

H

Safety information, installation and maintenance

Thread J

for

For full details see the Installation and Maintenance Instructions (IM-S03-11) supplied with the product.

Installation note:

The trap must be installed with the body upright so that the bucket is rising and falling vertically. The inlet and outlet connections should

be in a horizontal plane, with the trap installed below the drain point so that a water seal can be maintained around the open end of the

bucket.

Disposal:

This product is recycable. No ecological hazard is anticipated with the disposal of this product providing due care is taken.

How to order

Example: 1 off Spirax Sarco 1⁄2" HM34/8 inverted bucket steam trap with screwed BSP connections.

strainer screen

TI-P072-01 ST Issue 5

Page 3 of 4

HM34 Series Carbon Steel Inverted Bucket Steam Traps

5.6.20
