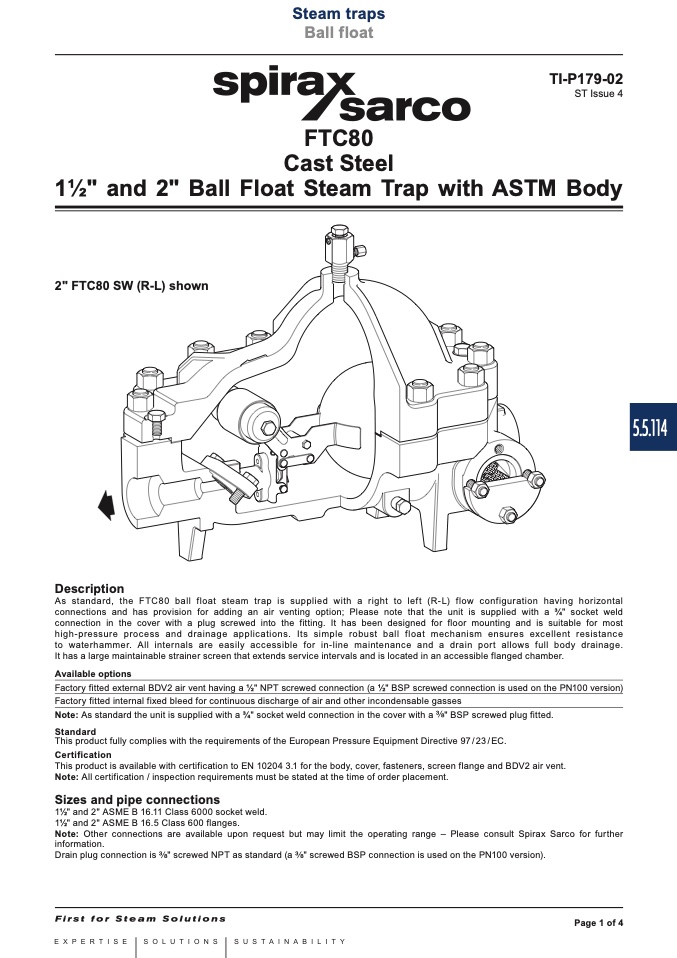

FTC80

As standard, the FTC80 ball float steam trap is supplied with a right to left (R-L) flow configuration having horizontal

connections and has provision for adding an air venting option; Please note that the unit is supplied with a 3⁄4" socket weld

connection in the cover with a plug screwed into the fitting. It has been designed for floor mounting and is suitable for most

high-pressure process and drainage applications. Its simple robust ball float mechanism ensures excellent resistance

to waterhammer. All internals are easily accessible for in-line maintenance and a drain port allows full body drainage.

It has a large maintainable strainer screen that extends service intervals and is located in an accessible flanged chamber.

Available options

Factory fitted external BDV2 air vent having a 1⁄2" NPT screwed connection (a 1⁄2" BSP screwed connection is used on the PN100 version)

Factory fitted internal fixed bleed for continuous discharge of air and other incondensable gasses

Note: As standard the unit is supplied with a 3⁄4" socket weld connection in the cover with a " BSP screwed plug fitted.

This product fully complies with the requirements of the European Pressure Equipment Directive 97 / 23 / EC.

Certification

This product is available with certification to EN 10204 3.1 for the body, cover, fasteners, screen flange and BDV2 air vent.

Note: All certification / inspection requirements must be stated at the time of order placement.

11⁄2" and 2" ASME B 16.11 Class 6000 socket weld.

11⁄2" and 2" ASME B 16.5 Class 600 flanges.

Note: Other connections are available upon request but may limit the operating range – Please consult Spirax Sarco for further

information.

Drain plug connection is " screwed NPT as standard (a " screwed BSP connection is used on the PN100 version).

Standard

ST Issue 4

Page 1 of 4
