Steam traps

Ball float

Local regulations may restrict the use of this product to below the conditions quoted.

In the interests of development and improvement of the product, we reserve the right to change the specification without notice.

© Copyright 2015

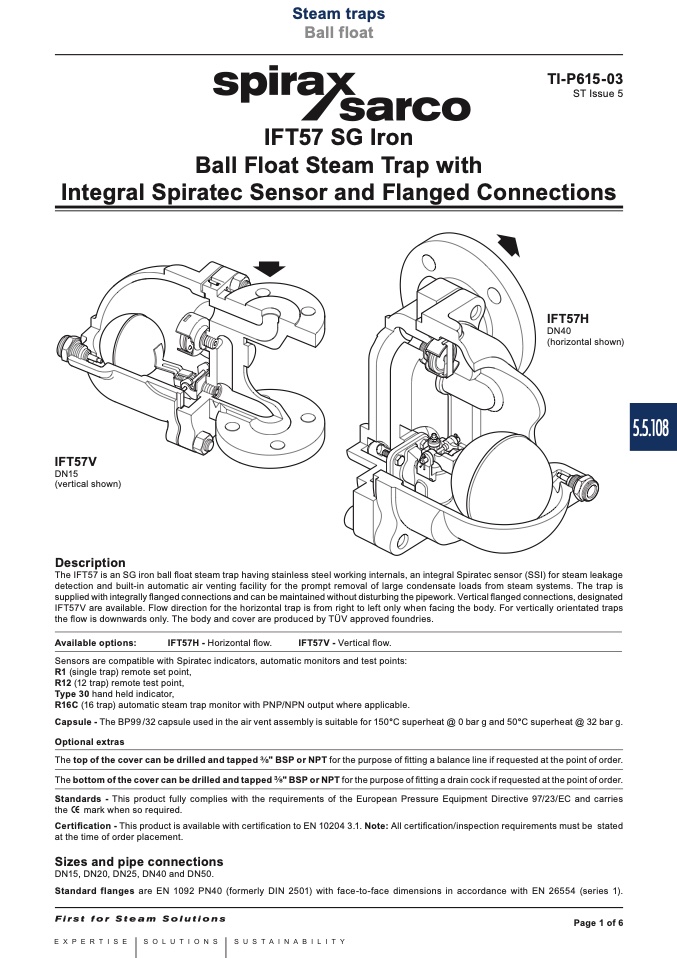

IFT57 SG Iron

Ball Float Steam Trap with

Integral Spiratec Sensor and Flanged Connections

IFT57V

DN15

(vertical shown)

Description

The IFT57 is an SG iron ball float steam trap having stainless steel working internals, an integral Spiratec sensor (SSI) for steam leakage

detection and built-in automatic air venting facility for the prompt removal of large condensate loads from steam systems. The trap is

supplied with integrally flanged connections and can be maintained without disturbing the pipework. Vertical

flanged connections, designated

IFT57V are available. Flow direction for the horizontal trap is from right to left only when facing the body. For vertically orientated traps

the flow is downwards only. The body and cover are produced by TÜV approved foundries.

Available options:

IFT57H - Horizontal flow.

IFT57V - Vertical flow.

Sensors are compatible with Spiratec indicators, automatic monitors and test points:

R1 (single trap) remote set point,

R12 (12 trap) remote test point,

Type 30 hand held indicator,

R16C (16 trap) automatic steam trap monitor with PNP/NPN output where applicable.

Capsule - The BP99 /32 capsule used in the air vent assembly is suitable for 150°C superheat @ 0 bar g and 50°C superheat @ 32 bar g.

Optional extras

The top of the cover can be drilled and tapped " BSP or NPT for the purpose of

fitting a balance line if requested at the point of order.

The bottom of the cover can be drilled and tapped " BSP or NPT for the purpose of fitting a drain cock if requested at the point of order.

Standards - This product fully complies with the requirements of the European Pressure Equipment Directive 97/23/EC and carries

the

mark when so required.

Certification - This product is available with certification to EN 10204 3.1. Note: All certification/inspection requirements must be stated

at the time of order placement.

Sizes and pipe connections

DN15, DN20, DN25, DN40 and DN50.

Standard flanges are EN 1092 PN40 (formerly DIN 2501) with face-to-face dimensions in accordance with EN 26554 (series 1).

TI-P615-03

ST Issue 5

IFT57H

DN40

(horizontal shown)

5.5.108

Page 1 of 6
