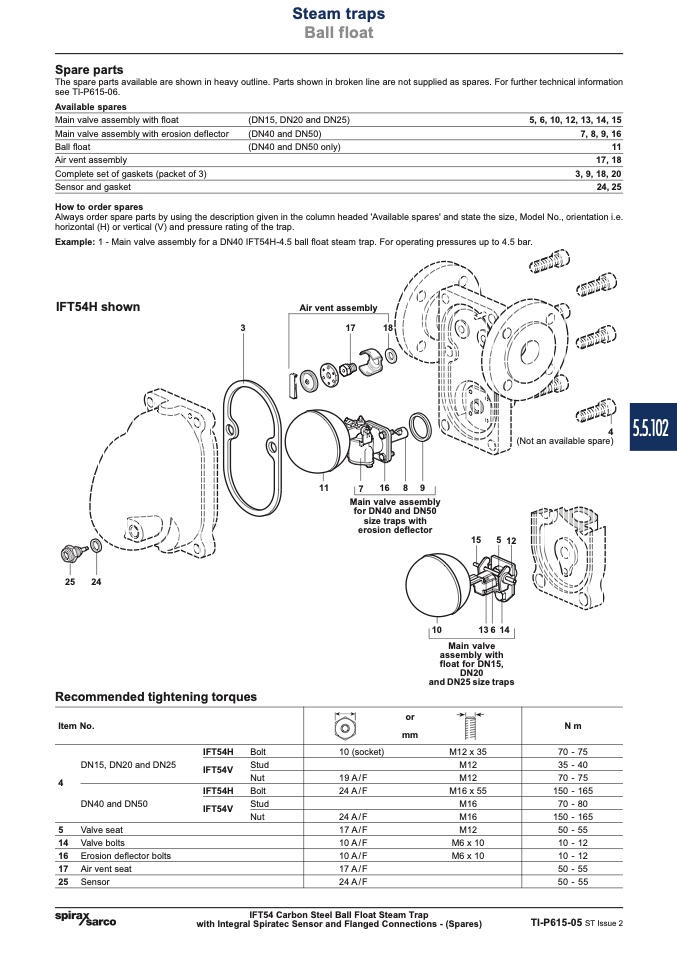

Spare parts

Available spares

Main valve assembly with float

Main valve assembly with erosion deflector

Ball float

Air vent assembly

Complete set of gaskets (packet of 3)

Sensor and gasket

How to order spares

(DN15, DN20 and DN25)

(DN40 and DN50)

(DN40 and DN50 only)

5, 6, 10, 12, 13, 14, 15

7, 8, 9, 16

11

17, 18

3, 9, 18, 20

24, 25

25 24

Recommended tightening torques

Item No.

10

15 512

13 6 14

4

DN15, DN20 and DN25

DN40 and DN50

IFT54H

IFT54V

IFT54H

IFT54V

Bolt

Stud

Nut

Bolt

Stud

Nut

10 (socket)

M12 x 35

M12

19A/F

M12

24A/F

M16x55

M16

24A/F

M16

17A/F

M12

10A/F

M6 x 10

10A/F

M6 x 10

17A/F

24A/F

5

Valve seat

14 Valve bolts

16 Erosion deflector bolts

17 Air vent seat

25 Sensor

Steam traps

Ball float

The spare parts available are shown in heavy outline. Parts shown in broken line are not supplied as spares. For further technical information

see TI-P615-06.

Always order spare parts by using the description given in the column headed 'Available spares' and state the size, Model No., orientation i.e.

horizontal (H) or vertical (V) and pressure rating of the trap.

Example: 1 - Main valve assembly for a DN40 IFT54H-4.5 ball float steam trap. For operating pressures up to 4.5 bar.

IFT54H shown

Air vent assembly

3

1

7

18

11

7 16 8 9

Main valve assembly

for DN40 and DN50

size traps with

erosion deflector

IFT54 Carbon Steel Ball Float Steam Trap

with Integral Spiratec Sensor and Flanged Connections - (Spares)

or

mm

N m

70 - 75

35 - 40

70 - 75

150 - 165

70 - 80

150 - 165

50-55

10-12

10-12

50-55

50-55

TI-P615-05 ST Issue 2

Main valve

assembly with

float for DN15,

DN20

and DN25 size traps

(Not an available spare)

4

5.5.102
