Boiler house
Local regulations may restrict the use of this product to below the conditions quoted.
Level controls
In the interests of development and improvement of the product, we reserve the right to change the specification without notice. © Copyright 2017
TI-P402-132
AB Issue 5
The unit can be panel, DIN rail or chassis mounted.
Principal features:
-
Level controller with two configurable alarms.
-
Universal power supply – 110 Vac to 240 Vac at 50 / 60 Hz.
-
UL and TÜV approved.
-
LCD shows level change direction.
-
Interactive safety feature.
-
Infrared comms.
Approvals
This product complies with the Electromagnetic Compatibility
Directive 2014/30/EU and all its requirements.
The LC1350 is suitable for Class A Environments (e.g. industrial).
A fully detailed EMC assessment has been made and has the
reference number UK Supply BH LC1350 2008.
The LC1350 complies with the Low Voltage Directive by meeting
the standards of:
-
EN 61010-1:2010 safety requirements for electrical equipment
for measurement, control, and laboratory use.
The LC1350 has been type-tested as a level control by meeting
the standard:
-
Vd TÜV requirements for water level control and limiting
devices, Water Level 100 (07.2010).
-
UL listed (open).
Clamping screw
LC1350
Level Controller

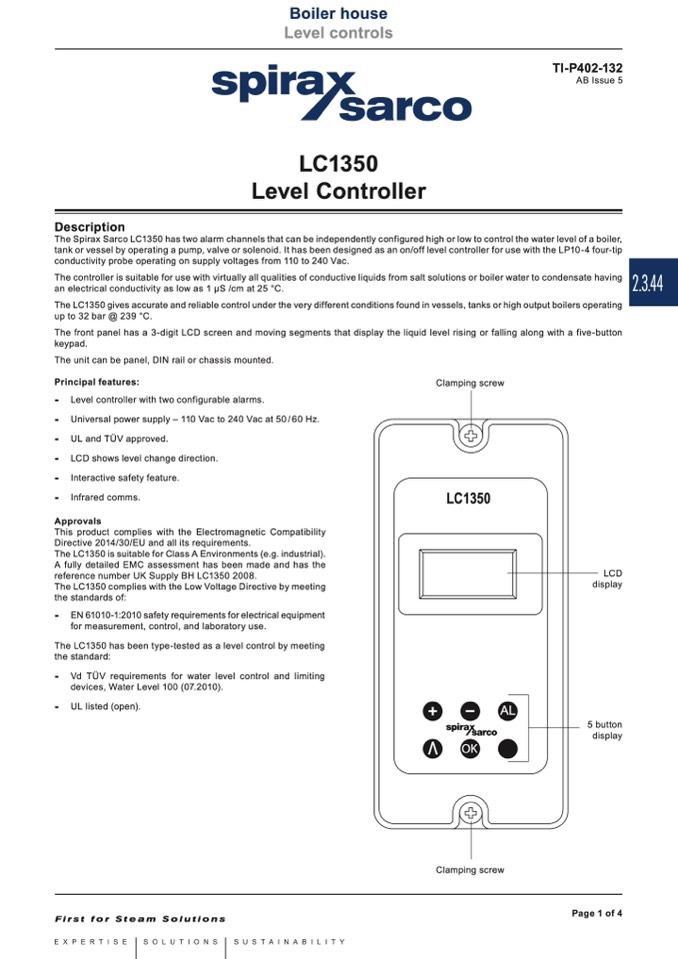

Description
The Spirax Sarco LC1350 has two alarm channels that can be independently configured high or low to control the water level of a boiler,
tank or vessel by operating a pump, valve or solenoid. It has been designed as an on/off level controller for use with the LP10-4 four-tip
conductivity probe operating on supply voltages from 110 to 240 Vac.
The controller is suitable for use with virtually all qualities of conductive liquids from salt solutions or boiler water to condensate having
an electrical conductivity as low as 1 μS /cm at 25 °C.
The LC1350 gives accurate and reliable control under the very different conditions found in vessels, tanks or high output boilers operating
up to 32 bar @ 239 °C.
The front panel has a 3-digit LCD screen and moving segments that display the liquid level rising or falling along with a five-button
keypad.
LC1350
AL
OK
LCD
display
5 button
display
Clamping screw
Page 1 of 4
2.3.44
