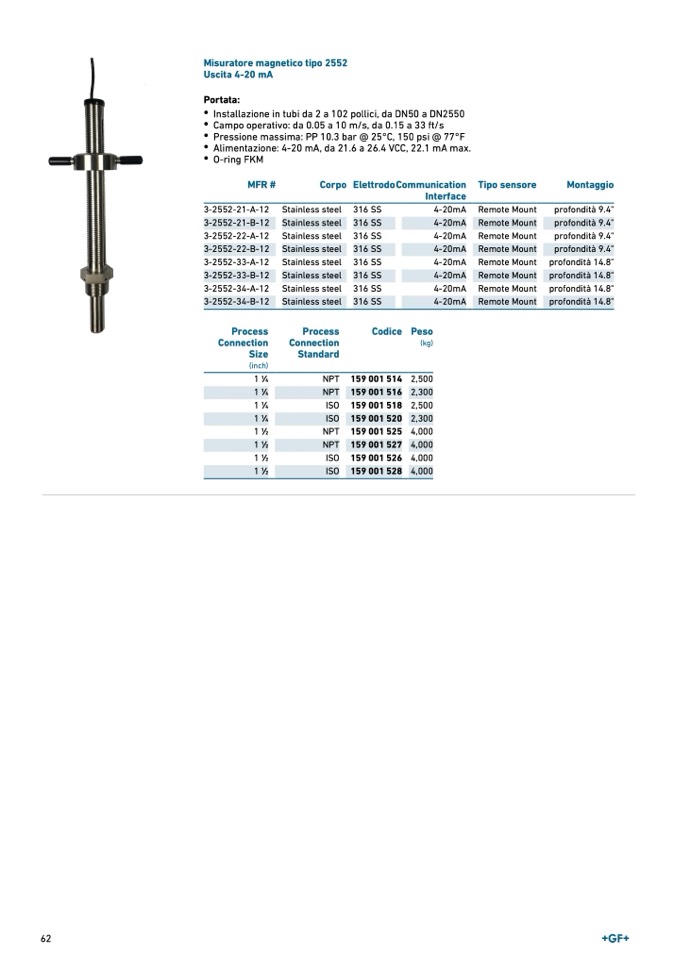

Misuratore magnetico tipo 2552

Uscita 4-20 mA

Portata:

• Installazione in tubi da 2 a 102 pollici, da DN50 a DN2550

• Campo operativo: da 0.05 a 10 m/s, da 0.15 a 33 ft/s

• Pressione massima: PP 10.3 bar @ 25°C, 150 psi @ 77°F

• Alimentazione: 4-20 mA, da 21.6 a 26.4 VCC, 22.1 mA max.

• O-ring FKM

MFR #

Corpo ElettrodoCommunicatio

n

Interface

Tipo sensore

Montaggi

o

3-2552-21-A-12 Stainless steel 316 SS

4-20mA Remote Mount

profondità 9.4

"

3-2552-21-B-12 Stainless steel 316 SS

4-20mA Remote Mount

profondità 9.4

"

3-2552-22-A-12 Stainless steel 316 SS

4-20mA Remote Mount

profondità 9.4

"

3-2552-22-B-12 Stainless steel 316 SS

4-20mA Remote Mount

profondità 9.4

"

3-2552-33-A-12 Stainless steel 316 SS

4-20mA Remote Mount profondità 14.8

"

3-2552-33-B-12 Stainless steel 316 SS

4-20mA Remote Mount profondità 14.8

"

3-2552-34-A-12 Stainless steel 316 SS

4-20mA Remote Mount profondità 14.8

"

3-2552-34-B-12 Stainless steel 316 SS

4-20mA Remote Mount profondità 14.8

"

Process

Connectio

n

Siz

e

(inch)

Proces

s

Connectio

n

Standard

Codice Peso

(kg)

1 1∕4

NPT 159 001 514 2,500

1 1∕4

NPT 159 001 516 2,300

1 1∕4

ISO 159 001 518 2,500

1 1∕4

ISO 159 001 520 2,300

1 1∕2

NPT 159 001 525 4,000

1 1∕2

NPT 159 001 527 4,000

1 1∕2

ISO 159 001 526 4,000

1 1∕2

ISO 159 001 528 4,000
