Accessories

Accessori

Accessories

BREZZA | ZEFIRO SYSTEM

Dimensions and personalization

Both systems can be manufactured in a

multi-panel composition, with a defined

width of 300, 400 and 500 mm, in height

from 1900 mm to 3500 mm.

Technical characteristics:

• On both versions; possibility of finishes

with see-through motifs (after previous

evaluation by the technical office);

• Available in masonry or plasterboard

versions;

• Aluminium cross-piece divided into

several parts to be joined on site;

• Gaps: upper 8 mm, lower 6 mm, between

the panels 8 mm, in regards of the wall

(if present): 4 mm;

• It is possible to supply panels of different

widths in the same system.

• Mechanical / electric locks not foreseen;

• The application of handles is not

foreseen.

Dimensioni e particolarità tecniche

Entrambi i sistemi sono realizzabili in

composizione multianta, di larghezza

definita da 300, 400 e 500 mm, in altezza

da 1900 mm a 3500 mm.

Particolarità tecniche:

• Su entrambe le versioni; possibilità di fini-

ture traforate con motivi passanti (previa

valutazione dell’ufficio tecnico);

• Realizzabile in versione muratura/

cartongesso;

• Traverso in alluminio suddiviso in più

parti da giuntare in opera;

• Sfiori: superiore 8 mm, inferiore 6 mm,

tra le ante 8 mm, rispetto al muro

(se presente) 4 mm;

• È possibile fornire ante di diversa

larghezza nello stesso sistema;

• Non previste serrature meccaniche o

elettriche;

• Non previste maniglie.

PIVOT. The Zefiro System rotation

is given by a mechanism of pins that

guarantees lineal motion, neat and

stylish. Together with the pivot the

relevant TEMPLATE to drill the

hole in the floor is always supplied.

MAGNETS. The leaves are

equipped with magnets that allow

them to be perfectly aligned with

each other in the rest position.

RAILS. Fly version is equipped with

2 rails to embed flush to the floor

and to the ceiling, with a footprint of

40 cm.

Accessori

PERNO. La rotazione del Sistema

Zefiro è determinata da un sistema di

perni che garantisce un movimento

lineare, pulito ed elegante. Assieme

al pannello de Linvisbile Sistema

Zefiro viene fornita sempre l’apposita

DIMA, per la realizzazione del foro

a pavimento.

MAGNETI. Le ante sono dotate di

magneti che consentono alle stesse

di allinearsi perfettamente fra di loro

in posizione di riposo.

BINARIO. La versione Fly, è dotata

di un binario a sfioro pavimento e

uno a soffitto, con ingombro di circa

40 mm, da incassare.

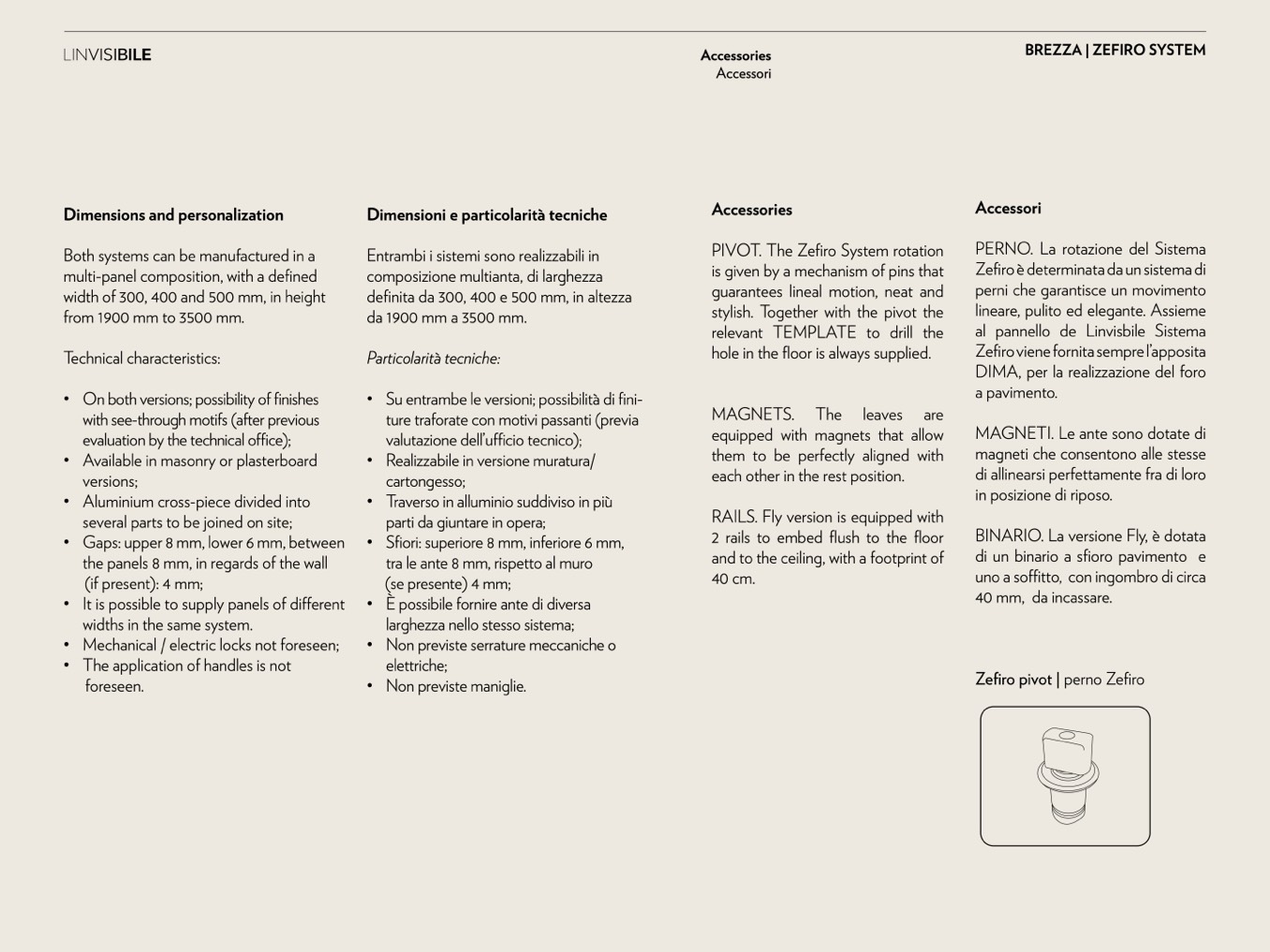

Zefiro pivot | perno Zefiro
