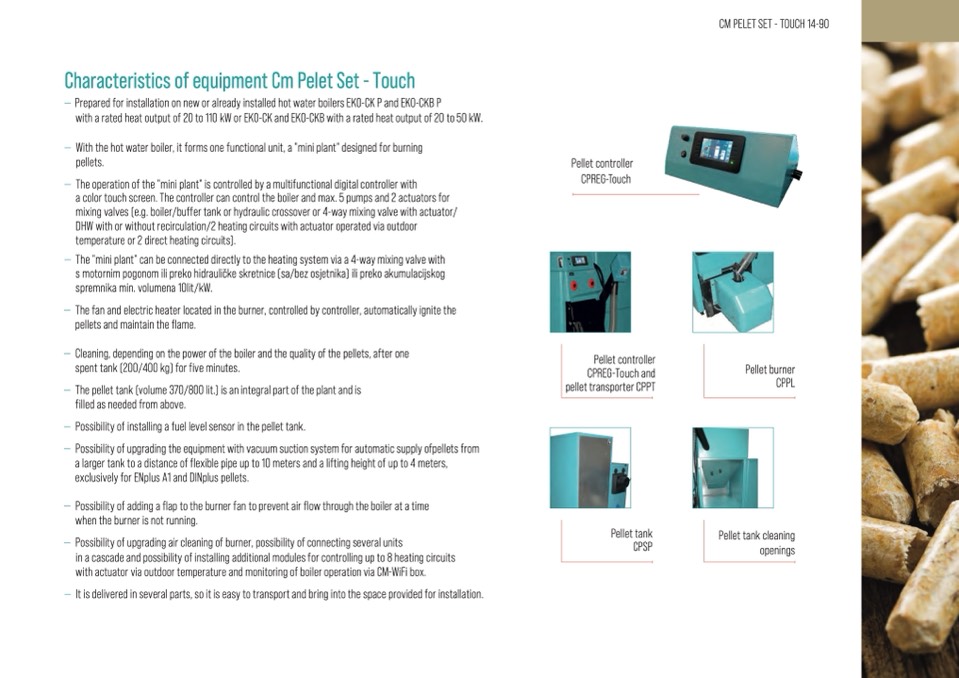

Characteristics of equipment Cm Pelet Set - Touch

— Prepared for installation on new or already installed hot water boilers EKO-CK P and EKO-CKB P

with a rated heat output of 20 to 110 kW or EKO-CK and EKO-CKB with a rated heat output of 20 to 50 kW.

— With the hot water boiler, it forms one functional unit, a "mini plant" designed for burning

pellets.

— The operation of the "mini plant" is controlled by a multifunctional digital controller with

a color touch screen. The controller can control the boiler and max. 5 pumps and 2 actuators for

mixing valves (e.g. boiler/buffer tank or hydraulic crossover or 4-way mixing valve with actuator/

DHW with or without recirculation/2 heating circuits with actuator operated via outdoor

temperature or 2 direct heating circuits).

— The "mini plant" can be connected directly to the heating system via a 4-way mixing valve with

s motornim pogonom ili preko hidrauličke skretnice (sa/bez osjetnika) ili preko akumulacijskog

spremnika min. volumena 10lit/kW.

— The fan and electric heater located in the burner, controlled by controller, automatically ignite the

pellets and maintain the flame.

— Cleaning, depending on the power of the boiler and the quality of the pellets, after one

spent tank (200/400 kg) for five minutes.

— Thepellettank(volume370/800lit.)isanintegralpartoftheplantandis

filled as needed from above.

— Possibility of installing a fuel level sensor in the pellet tank.

— Possibility of upgrading the equipment with vacuum suction system for automatic supply ofpellets from

a larger tank to a distance of flexible pipe up to 10 meters and a lifting height of up to 4 meters,

exclusively for ENplus A1 and DINplus pellets.

— Possibility of adding a flap to the burner fan to prevent air flow through the boiler at a time

when the burner is not running.

— Possibility of upgrading air cleaning of burner, possibility of connecting several units

in a cascade and possibility of installing additional modules for controlling up to 8 heating circuits

with actuator via outdoor temperature and monitoring of boiler operation via CM-WiFi box.

— It is delivered in several parts, so it is easy to transport and bring into the space provided for installation.

Pellet controller

CPREG-Touch

CM PELET SET - TOUCH 14-90

Pellet controller

CPREG-Touch and

pellet transporter CPPT

Pellet burner

CPPL

Pellet tank

CPSP

Pellet tank cleaning

openings
