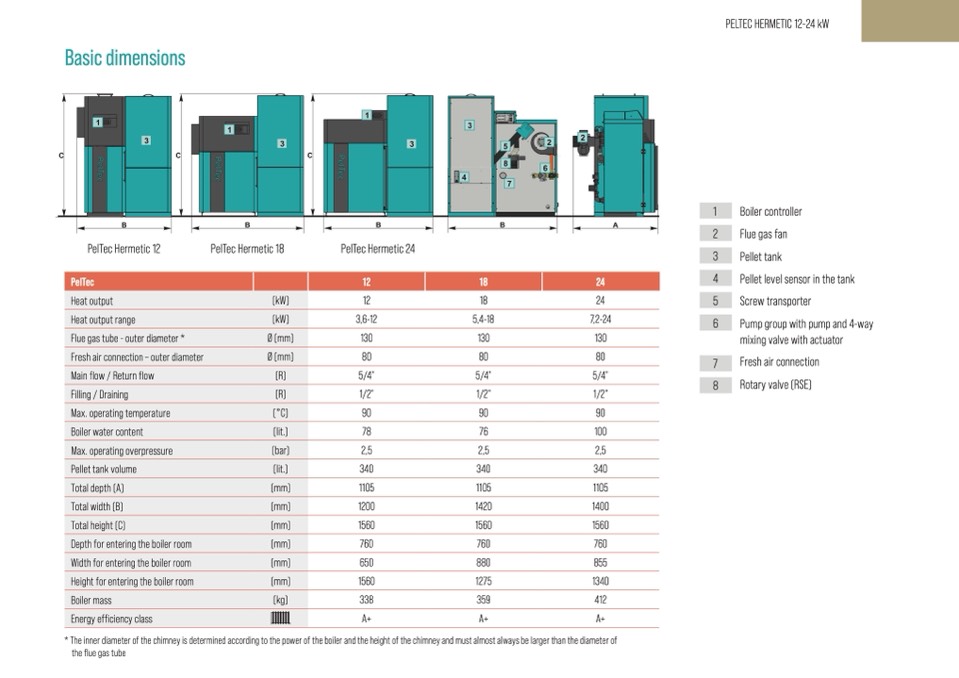

Basic dimensions

PelTec Hermetic 12

PelTec

Heat output

Heat output range

Flue gas tube - outer diameter *

Fresh air connection – outer diameter

Main flow / Return flow

Filling / Draining

Max. operating temperature

Boiler water content

Max. operating overpressure

Pellet tank volume

Total depth (A)

Total width (B)

Total height (C)

Depth for entering the boiler room

Width for entering the boiler room

Height for entering the boiler room

Boiler mass

Energy efficiency class

PelTec Hermetic 18

(kW)

(kW)

Ø (mm)

Ø (mm)

(R)

(R)

(°C)

(lit.)

(bar)

(lit.)

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

(kg)

PelTec Hermetic 24

12

18

24

12

18

24

3,6-12

5,4-18

7,2-24

130

130

130

80

80

80

5/4"

5/4"

5/4"

1/2"

1/2"

1/2"

90

90

90

78

76

100

2,5

2,5

2,5

340

340

340

1105

1105

1105

1200

1420

1400

1560

1560

1560

760

760

760

650

880

855

1560

1275

1340

338

359

412

A+

A+

A+

1

Boiler controller

2

Flue gas fan

3

Pellet tank

4

Pellet level sensor in the tank

5

Screw transporter

6

Pump group with pump and 4-way

mixing valve with actuator

Fresh air connection

8

Rotary valve (RSE)

* The inner diameter of the chimney is determined according to the power of the boiler and the height of the chimney and must almost always be larger than the diameter of

the flue gas tube

7

PELTEC HERMETIC 12-24 kW
