PELTEC HERMETIC 12-24 kW

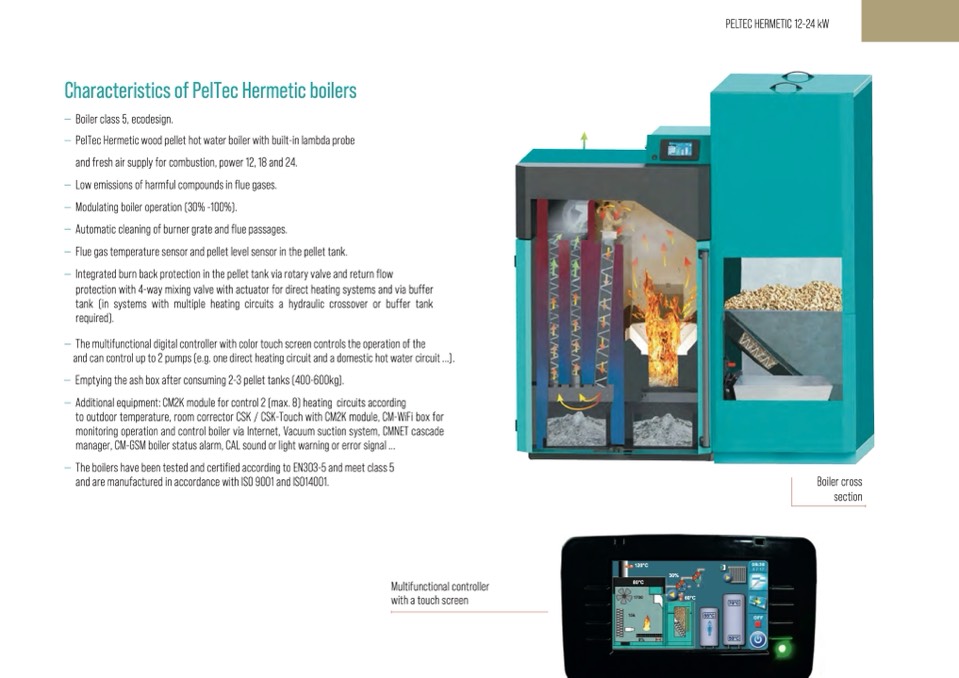

Characteristics of PelTec Hermetic boilers

— Boiler class 5, ecodesign.

— PelTec Hermetic wood pellet hot water boiler with built-in lambda probe

and fresh air supply for combustion, power 12, 18 and 24.

— Low emissions of harmful compounds in flue gases.

— Modulating boiler operation (30% -100%).

— Automatic cleaning of burner grate and flue passages.

— Flue gas temperature sensor and pellet level sensor in the pellet tank.

— Integrated burn back protection in the pellet tank via rotary valve and return flow

protection with 4-way mixing valve with actuator for direct heating systems and via buffer

tank (in systems with multiple heating circuits a hydraulic crossover or buffer tank

required).

— The multifunctional digital controller with color touch screen controls the operation of the

and can control up to 2 pumps (e.g. one direct heating circuit and a domestic hot water circuit ...).

— Emptying the ash box after consuming 2-3 pellet tanks (400-600kg).

— Additional equipment: CM2K module for control 2 (max. 8) heating circuits according

to outdoor temperature, room corrector CSK / CSK-Touch with CM2K module, CM-WiFi box for

monitoring operation and control boiler via Internet, Vacuum suction system, CMNET cascade

manager, CM-GSM boiler status alarm, CAL sound or light warning or error signal ...

— The boilers have been tested and certified according to EN303-5 and meet class 5

and are manufactured in accordance with ISO 9001 and ISO14001.

Multifunctional controller

with a touch screen

Boiler cross

section
