WOOD GASIFICATION BOILER

54

55

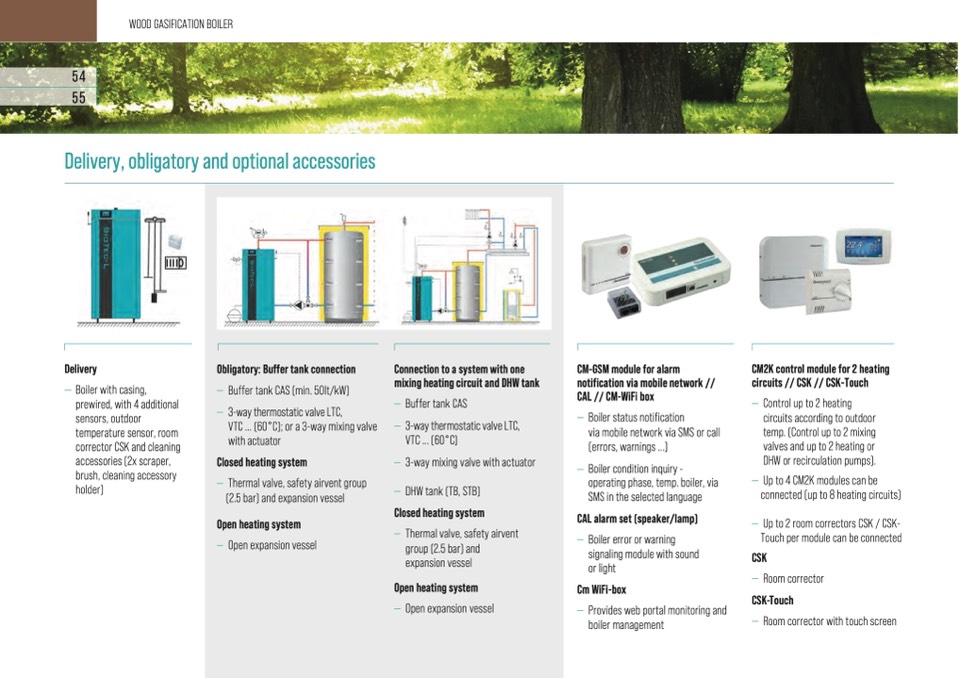

Delivery, obligatory and optional accessories

Delivery

— Boiler with casing,

prewired, with 4 additional

sensors, outdoor

temperature sensor, room

corrector CSK and cleaning

accessories (2x scraper,

brush, cleaning accessory

holder)

CM-GSM module for alarm

notification via mobile network //

CAL // CM-WiFi box

CM2K control module for 2 heating

circuits // CSK // CSK-Touch

— Control up to 2 heating

circuits according to outdoor

temp. (Control up to 2 mixing

valves and up to 2 heating or

DHW or recirculation pumps).

— Up to 4 CM2K modules can be

connected (up to 8 heating circuits)

— Up to 2 room correctors CSK / CSK-

Touch per module can be connected

CSK

— Room corrector

CSK-Touch

— Room corrector with touch screen

—

—

Boiler status notification

via mobile network via SMS or call

(errors, warnings ...)

Boiler condition inquiry -

operating phase, temp. boiler, via

SMS in the selected language

CAL alarm set (speaker/lamp)

— Boiler error or warning

signaling module with sound

or light

Cm WiFi-box

— Provides web portal monitoring and

boiler management

Obligatory: Buffer tank connection

— Buffer tank CAS (min. 50lt/kW)

— 3-waythermostaticvalveLTC,

VTC ... (60°C); or a 3-way mixing valve

with actuator

Closed heating system

— Thermal valve, safety airvent group

(2.5 bar) and expansion vessel

Open heating system

— Open expansion vessel

Connection to a system with one

mixing heating circuit and DHW tank

— Buffer tank CAS

— 3-way thermostatic valve LTC,

VTC ... (60°C)

— 3-way mixing valve with actuator

— DHW tank (TB, STB)

Closed heating system

— Thermal valve, safety airvent

group (2.5 bar) and

expansion vessel

Open heating system

— Open expansion vessel
