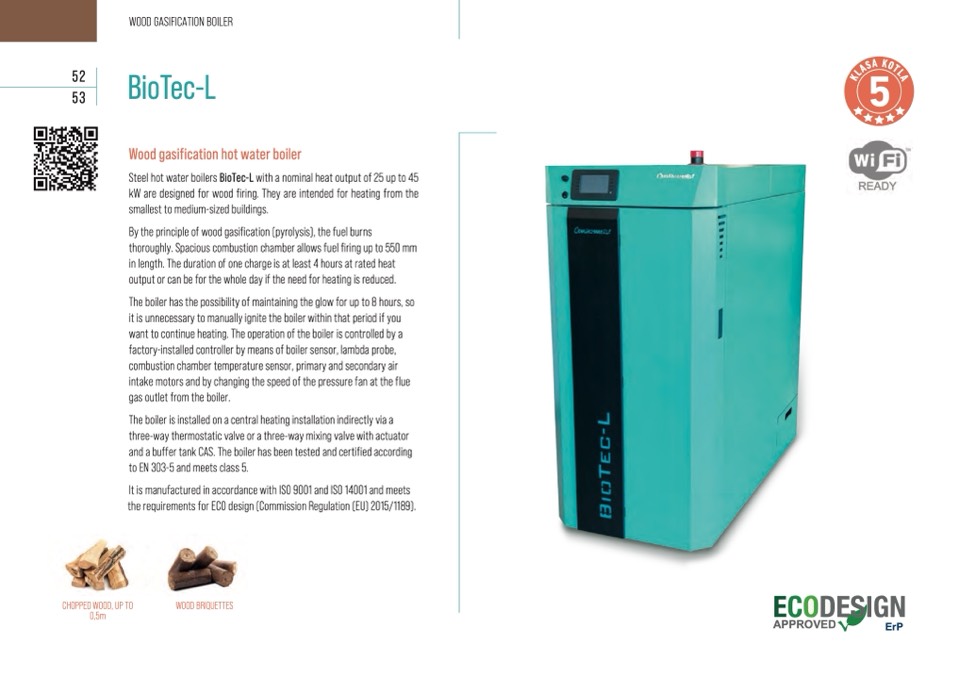

WOOD GASIFICATION BOILER

BioTec-L

Wood gasification hot water boiler

Steel hot water boilers BioTec-L with a nominal heat output of 25 up to 45

kW are designed for wood firing. They are intended for heating from the

smallest to medium-sized buildings.

By the principle of wood gasification (pyrolysis), the fuel burns

thoroughly. Spacious combustion chamber allows fuel firing up to 550 mm

in length. The duration of one charge is at least 4 hours at rated heat

output or can be for the whole day if the need for heating is reduced.

The boiler has the possibility of maintaining the glow for up to 8 hours, so

it is unnecessary to manually ignite the boiler within that period if you

want to continue heating. The operation of the boiler is controlled by a

factory-installed controller by means of boiler sensor, lambda probe,

combustion chamber temperature sensor, primary and secondary air

intake motors and by changing the speed of the pressure fan at the flue

gas outlet from the boiler.

The boiler is installed on a central heating installation indirectly via a

three-way thermostatic valve or a three-way mixing valve with actuator

and a buffer tank CAS. The boiler has been tested and certified according

to EN 303-5 and meets class 5.

It is manufactured in accordance with ISO 9001 and ISO 14001 and meets

the requirements for ECO design (Commission Regulation (EU) 2015/1189).

CHOPPED WOOD, UP TO

WOOD BRIQUETTES

0,5m

APPROVED

ErP
