WOOD GASIFICATION BOILER

50

51

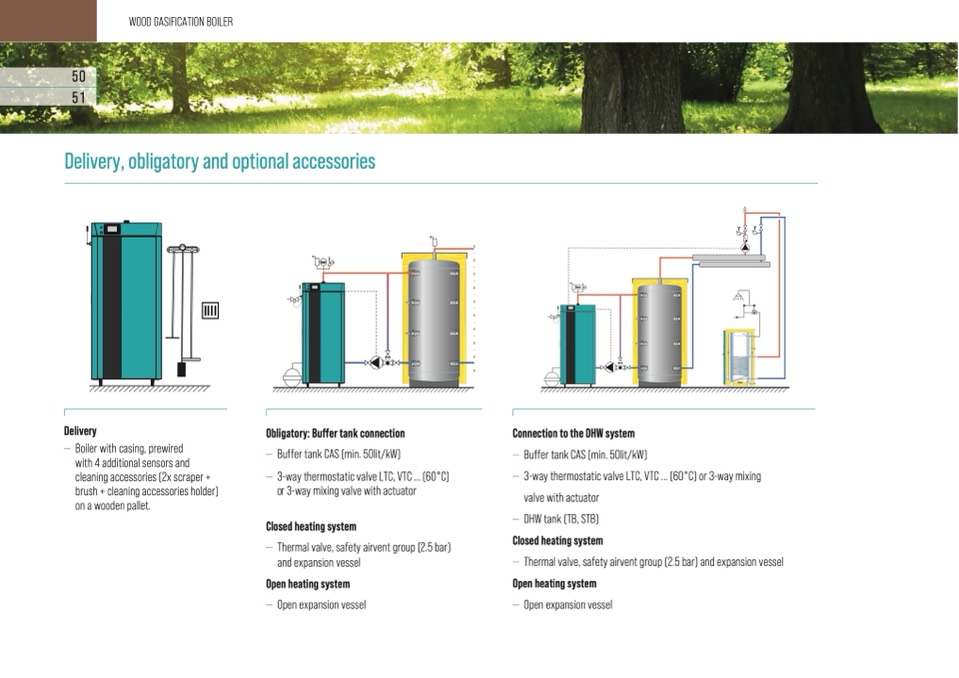

Delivery, obligatory and optional accessories

Delivery

— Boiler with casing, prewired

with 4 additional sensors and

cleaning accessories (2x scraper +

brush + cleaning accessories holder)

on a wooden pallet.

Obligatory: Buffer tank connection

— Buffer tank CAS (min. 50lit/kW)

— 3-way thermostatic valve LTC, VTC ... (60°C)

or 3-way mixing valve with actuator

Closed heating system

— Thermal valve, safety airvent group (2.5 bar)

and expansion vessel

Open heating system

— Open expansion vessel

Connection to the DHW system

— Buffer tank CAS (min. 50lit/kW)

— 3-way thermostatic valve LTC, VTC ... (60°C) or 3-way mixing

valve with actuator

— DHW tank (TB, STB)

Closed heating system

— Thermal valve, safety airvent group (2.5 bar) and expansion vessel

Open heating system

— Open expansion vessel
