WOOD GASIFICATION BOILER

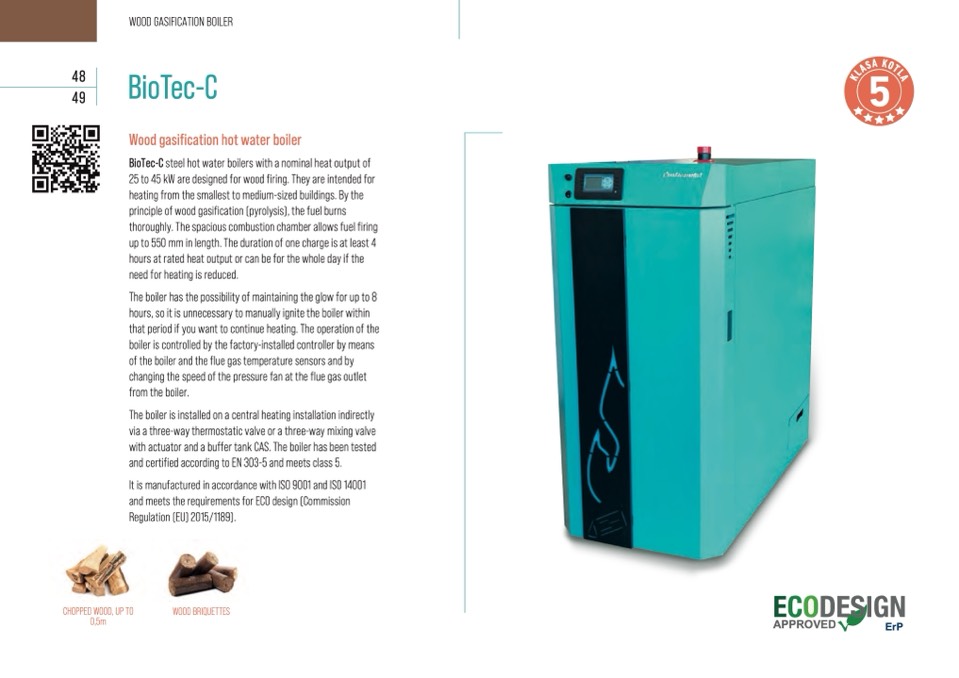

BioTec-C

Wood gasification hot water boiler

BioTec-C steel hot water boilers with a nominal heat output of

25 to 45 kW are designed for wood firing. They are intended for

heating from the smallest to medium-sized buildings. By the

principle of wood gasification (pyrolysis), the fuel burns

thoroughly. The spacious combustion chamber allows fuel firing

up to 550 mm in length. The duration of one charge is at least 4

hours at rated heat output or can be for the whole day if the

need for heating is reduced.

The boiler has the possibility of maintaining the glow for up to 8

hours, so it is unnecessary to manually ignite the boiler within

that period if you want to continue heating. The operation of the

boiler is controlled by the factory-installed controller by means

of the boiler and the flue gas temperature sensors and by

changing the speed of the pressure fan at the flue gas outlet

from the boiler.

The boiler is installed on a central heating installation indirectly

via a three-way thermostatic valve or a three-way mixing valve

with actuator and a buffer tank CAS. The boiler has been tested

and certified according to EN 303-5 and meets class 5.

It is manufactured in accordance with ISO 9001 and ISO 14001

and meets the requirements for ECO design (Commission

Regulation (EU) 2015/1189).

CHOPPED WOOD, UP TO

WOOD BRIQUETTES

0,5m

APPROVED

ErP
