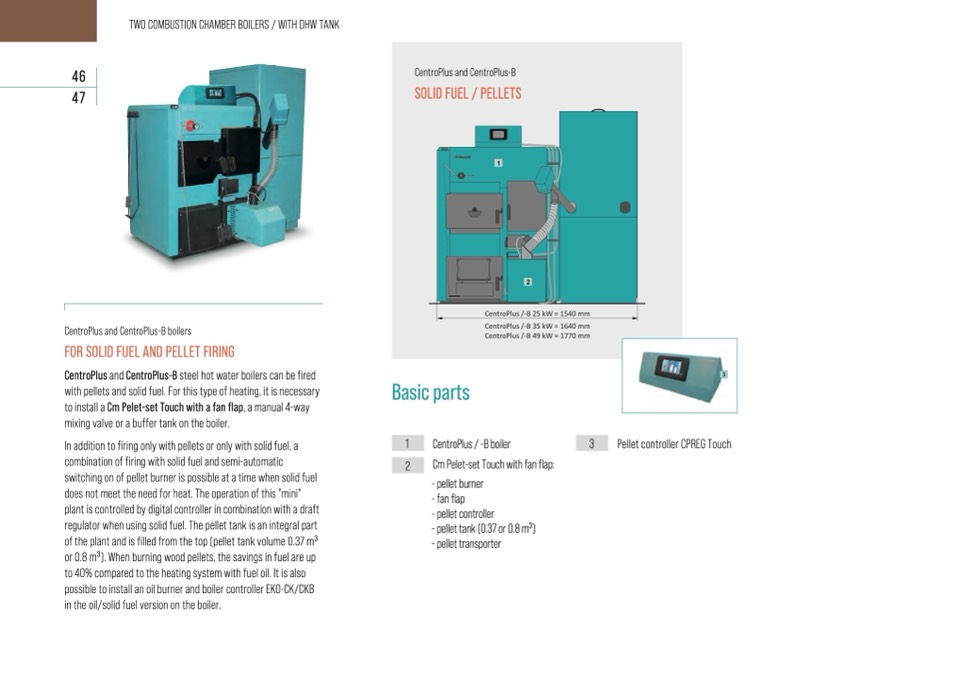

CentroPlus and CentroPlus-B

SOLID FUEL / PELLETS

46

47

1

3

2

TWO COMBUSTION CHAMBER BOILERS / WITH DHW TANK

CentroPlus and CentroPlus-B boilers

FOR SOLID FUEL AND PELLET FIRING

CentroPlus and CentroPlus-B steel hot water boilers can be fired

with pellets and solid fuel. For this type of heating, it is necessary

to install a Cm Pelet-set Touch with a fan flap, a manual 4-way

mixing valve or a buffer tank on the boiler.

In addition to firing only with pellets or only with solid fuel, a

combination of firing with solid fuel and semi-automatic

switching on of pellet burner is possible at a time when solid fuel

does not meet the need for heat. The operation of this "mini"

plant is controlled by digital controller in combination with a draft

regulator when using solid fuel. The pellet tank is an integral part

of the plant and is filled from the top (pellet tank volume 0.37 m3

or 0.8 m3). When burning wood pellets, the savings in fuel are up

to 40% compared to the heating system with fuel oil. It is also

possible to install an oil burner and boiler controller EKO-CK/CKB

in the oil/solid fuel version on the boiler.

Basic parts

CentroPlus / -B boiler

Cm Pelet-set Touch with fan flap:

- pellet burner

- fan flap

- pellet controller

- pellet tank (0.37 or 0.8 m3)

- pellet transporter

Pellet controller CPREG Touch
