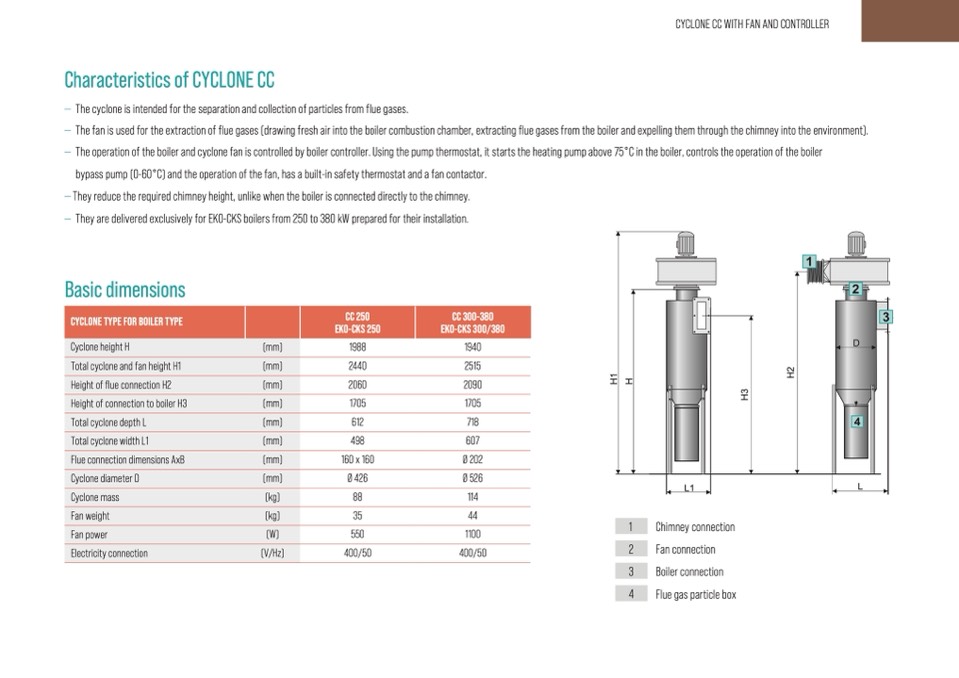

Characteristics of CYCLONE CC
— The cyclone is intended for the separation and collection of particles from flue gases.
— The fan is used for the extraction of flue gases (drawing fresh air into the boiler combustion chamber, extracting flue gases from the boiler and expelling them through the chimney into the environment).
— The operation of the boiler and cyclone fan is controlled by boiler controller. Using the pump thermostat, it starts the heating pump above 75°C in the boiler, controls the operation of the boiler
bypass pump (0-60°C) and the operation of the fan, has a built-in safety thermostat and a fan contactor.
— They reduce the required chimney height, unlike when the boiler is connected directly to the chimney.
— They are delivered exclusively for EKO-CKS boilers from 250 to 380 kW prepared for their installation.
CYCLONE CC WITH FAN AND CONTROLLER
Basic dimensions
CYCLONE TYPE FOR BOILER TYPE
Cyclone height H
Total cyclone depth L
(mm)
CC 250
EKO-CKS 250
CC 300-380
EKO-CKS 300/380
Total cyclone and fan height H1
Height of flue connection H2
(mm)
(mm)
Height of connection to boiler H3
(mm)
(mm)
Total cyclone width L1
Flue connection dimensions AxB
Cyclone mass
(mm)
(mm)
Cyclone diameter D
(mm)
(kg)
Fan weight
Fan power
(kg)
(W)
Electricity connection
(V/Hz)
1988
2440
2060
1705
612
498
160 x 160
Ø 426
88
35
550
400/50
1940
2515
2090
1705
718
607
Ø 202
Ø 526
114
44
1100
400/50
1
Chimney connection
2
Fan connection
3
Boiler connection
4
Flue gas particle box
