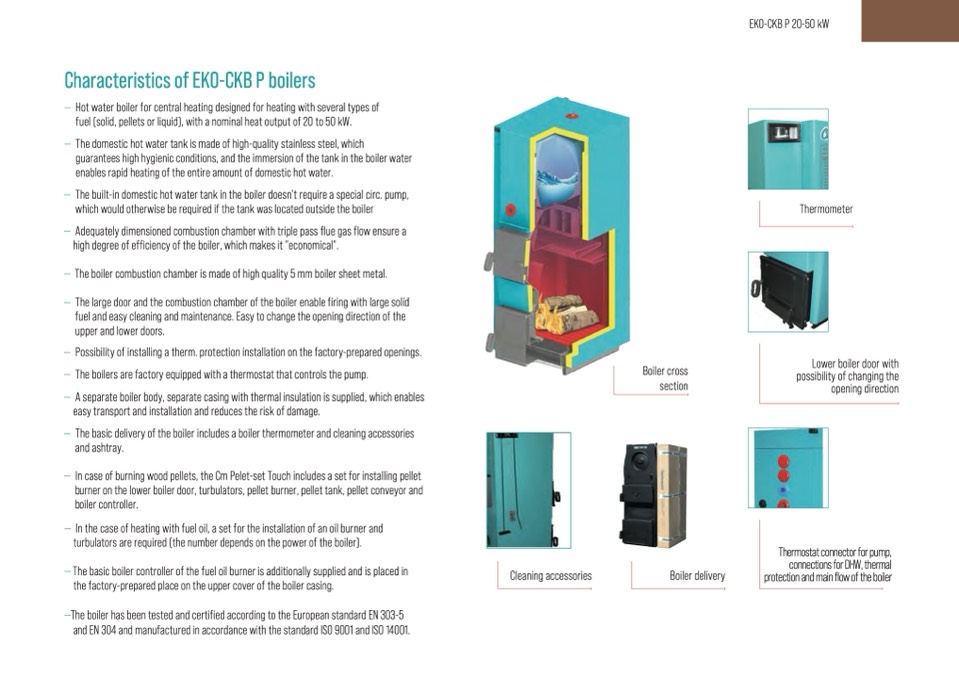

Characteristics of EKO-CKB P boilers

— Hot water boiler for central heating designed for heating with several types of

fuel (solid, pellets or liquid), with a nominal heat output of 20 to 50 kW.

— The domestic hot water tank is made of high-quality stainless steel, which

guarantees high hygienic conditions, and the immersion of the tank in the boiler water

enables rapid heating of the entire amount of domestic hot water.

— The built-in domestic hot water tank in the boiler doesn't require a special circ. pump,

which would otherwise be required if the tank was located outside the boiler

— Adequately dimensioned combustion chamber with triple pass flue gas flow ensure a

high degree of efficiency of the boiler, which makes it "economical".

— The boiler combustion chamber is made of high quality 5 mm boiler sheet metal.

— The large door and the combustion chamber of the boiler enable firing with large solid

fuel and easy cleaning and maintenance. Easy to change the opening direction of the

upper and lower doors.

— Possibility of installing a therm. protection installation on the factory-prepared openings.

— The boilers are factory equipped with a thermostat that controls the pump.

— A separate boiler body, separate casing with thermal insulation is supplied, which enables

easy transport and installation and reduces the risk of damage.

— The basic delivery of the boiler includes a boiler thermometer and cleaning accessories

and ashtray.

— In case of burning wood pellets, the Cm Pelet-set Touch includes a set for installing pellet

burner on the lower boiler door, turbulators, pellet burner, pellet tank, pellet conveyor and

boiler controller.

— In the case of heating with fuel oil, a set for the installation of an oil burner and

turbulators are required (the number depends on the power of the boiler).

— The basic boiler controller of the fuel oil burner is additionally supplied and is placed in

the factory-prepared place on the upper cover of the boiler casing.

—The boiler has been tested and certified according to the European standard EN 303-5

and EN 304 and manufactured in accordance with the standard ISO 9001 and ISO 14001.

Thermometer

EKO-CKB P 20-50 kW

Boiler cross

section

Lower boiler door with

possibility of changing the

opening direction

Cleaning accessories

Boiler delivery

Thermostat connector for pump,

connections for DHW, thermal

protection and main flow of the boiler
