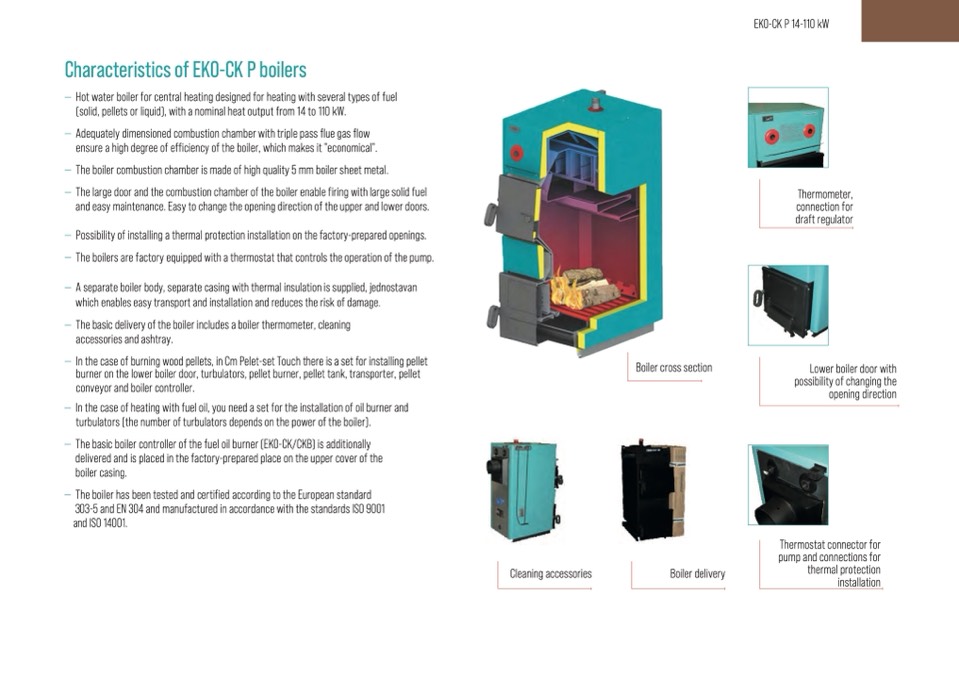

Characteristics of EKO-CK P boilers

— Hot water boiler for central heating designed for heating with several types of fuel

(solid, pellets or liquid), with a nominal heat output from 14 to 110 kW.

— Adequatelydimensionedcombustionchamberwithtriplepassfluegasflow

ensure a high degree of efficiency of the boiler, which makes it "economical".

— The boiler combustion chamber is made of high quality 5 mm boiler sheet metal.

— The large door and the combustion chamber of the boiler enable firing with large solid fuel

and easy maintenance. Easy to change the opening direction of the upper and lower doors.

— Possibility of installing a thermal protection installation on the factory-prepared openings.

— The boilers are factory equipped with a thermostat that controls the operation of the pump.

— A separate boiler body, separate casing with thermal insulation is supplied, jednostavan

which enables easy transport and installation and reduces the risk of damage.

— The basic delivery of the boiler includes a boiler thermometer, cleaning

accessories and ashtray.

— In the case of burning wood pellets, in Cm Pelet-set Touch there is a set for installing pellet

burner on the lower boiler door, turbulators, pellet burner, pellet tank, transporter, pellet

conveyor and boiler controller.

— In the case of heating with fuel oil, you need a set for the installation of oil burner and

turbulators (the number of turbulators depends on the power of the boiler).

— The basic boiler controller of the fuel oil burner (EKO-CK/CKB) is additionally

delivered and is placed in the factory-prepared place on the upper cover of the

boiler casing.

— The boiler has been tested and certified according to the European standard

303-5 and EN 304 and manufactured in accordance with the standards ISO 9001

and ISO 14001.

Thermometer,

connection for

draft regulator

EKO-CK P 14-110 kW

Boiler cross section

Lower boiler door with

possibility of changing the

opening direction

Cleaning accessories

Boiler delivery

Thermostat connector for

pump and connections for

thermal protection

installation
