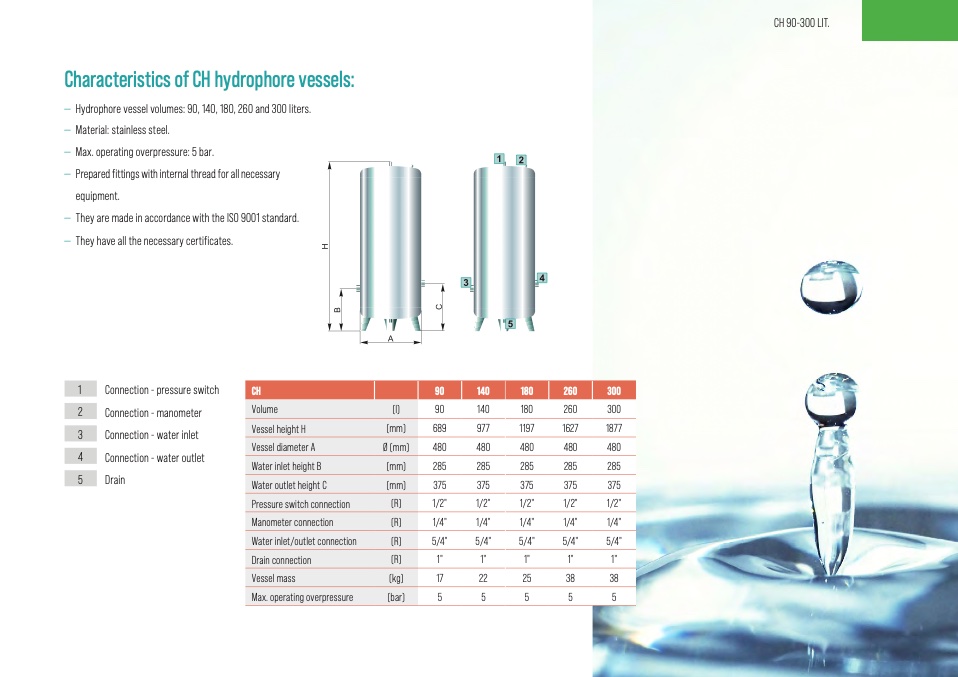

Characteristics of CH hydrophore vessels:

— Hydrophore vessel volumes: 90, 140, 180, 260 and 300 liters.

— Material: stainless steel.

— Max. operating overpressure: 5 bar.

— Preparedfittingswithinternalthreadforallnecessary

equipment.

— They are made in accordance with the ISO 9001 standard.

— They have all the necessary certificates.

CH 90-300 LIT.

CH

90

140

180

260

300

Volume

(l)

90

140

180

260

300

Vessel height H

(mm)

689

977

1197

1627

1877

Vessel diameter A

Ø (mm)

480

480

480

480

480

Water inlet height B

(mm)

285

285

285

285

285

Water outlet height C

(mm)

375

375

375

375

375

Pressure switch connection

(R)

1/2"

1/2"

1/2"

1/2"

1/2"

Manometer connection

(R)

1/4"

1/4"

1/4"

1/4"

1/4"

Water inlet/outlet connection

(R)

5/4"

5/4"

5/4"

5/4"

5/4"

Drain connection

(R)

1"

1"

1"

1"

1"

Vessel mass

(kg)

17

22

25

38

38

Max. operating overpressure

(bar)

5

5

5

5

5

1

Connection - pressure switch

2

Connection - manometer

3

Connection - water inlet

4

Connection - water outlet

5

Drain
