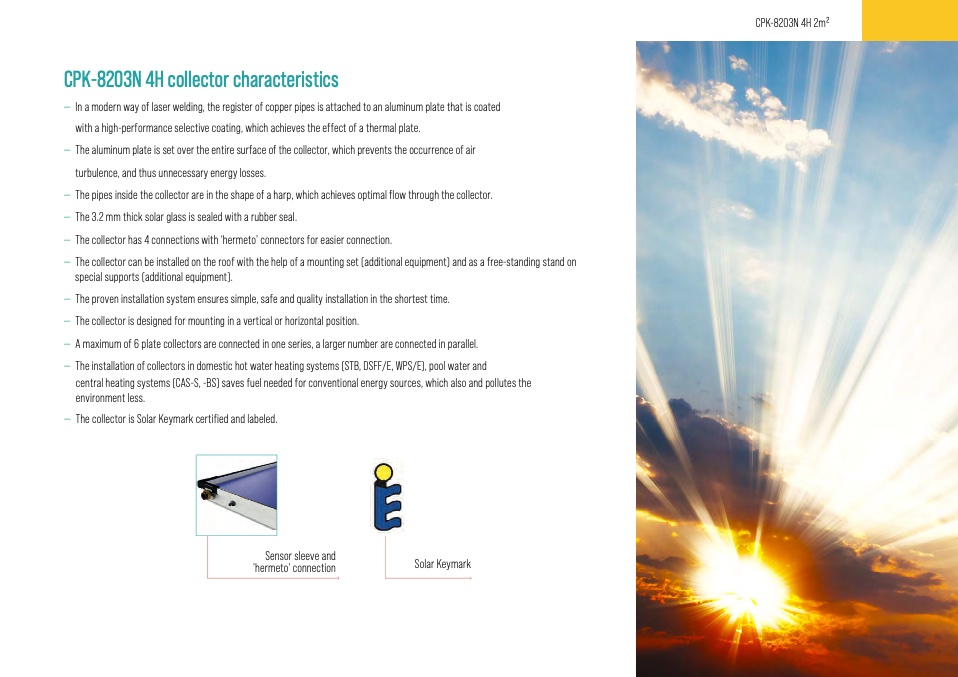

CPK-8203N 4H collector characteristics

— In a modern way of laser welding, the register of copper pipes is attached to an aluminum plate that is coated

with a high-performance selective coating, which achieves the effect of a thermal plate.

— The aluminum plate is set over the entire surface of the collector, which prevents the occurrence of air

turbulence, and thus unnecessary energy losses.

— The pipes inside the collector are in the shape of a harp, which achieves optimal flow through the collector.

— The 3.2 mm thick solar glass is sealed with a rubber seal.

— The collector has 4 connections with ‘hermeto’ connectors for easier connection.

— The collector can be installed on the roof with the help of a mounting set (additional equipment) and as a free-standing stand on

special supports (additional equipment).

— The proven installation system ensures simple, safe and quality installation in the shortest time.

— The collector is designed for mounting in a vertical or horizontal position.

— A maximum of 6 plate collectors are connected in one series, a larger number are connected in parallel.

— The installation of collectors in domestic hot water heating systems (STB, DSFF/E, WPS/E), pool water and

central heating systems (CAS-S, -BS) saves fuel needed for conventional energy sources, which also and pollutes the

environment less.

— The collector is Solar Keymark certified and labeled.

Sensor sleeve and

'hermeto' connection

Solar Keymark

CPK-8203N 4H 2m2
