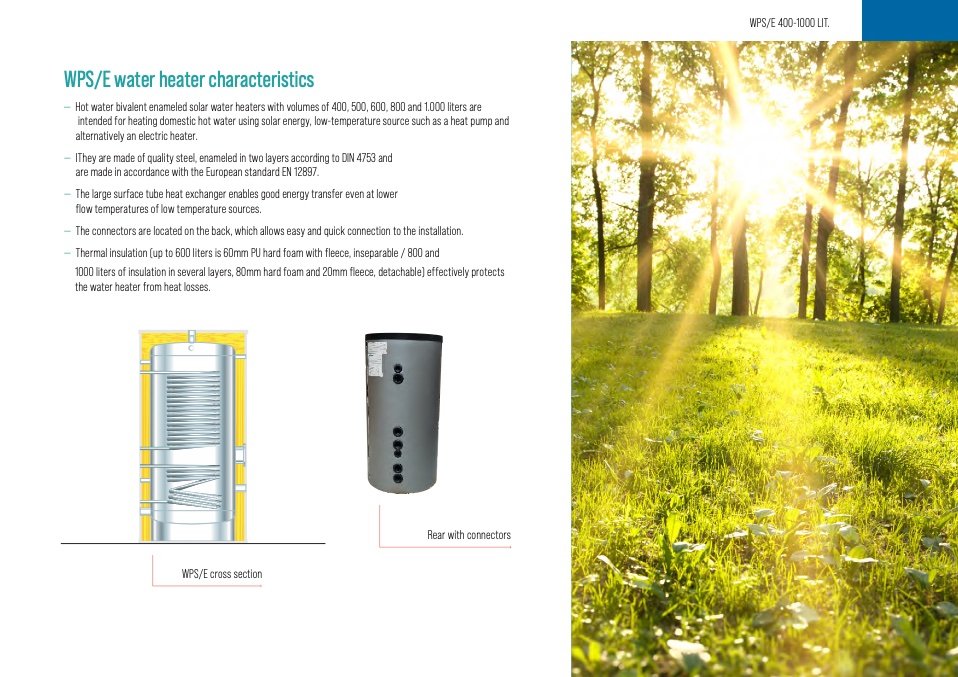

WPS/E water heater characteristics

— Hot water bivalent enameled solar water heaters with volumes of 400, 500, 600, 800 and 1.000 liters are

intended for heating domestic hot water using solar energy, low-temperature source such as a heat pump and

alternatively an electric heater.

— IThey are made of quality steel, enameled in two layers according to DIN 4753 and

are made in accordance with the European standard EN 12897.

— The large surface tube heat exchanger enables good energy transfer even at lower

flow temperatures of low temperature sources.

— The connectors are located on the back, which allows easy and quick connection to the installation.

— Thermal insulation (up to 600 liters is 60mm PU hard foam with fleece, inseparable / 800 and

1000 liters of insulation in several layers, 80mm hard foam and 20mm fleece, detachable) effectively protects

the water heater from heat losses.

WPS/E 400-1000 LIT.

Rear with connectors

WPS/E cross section
