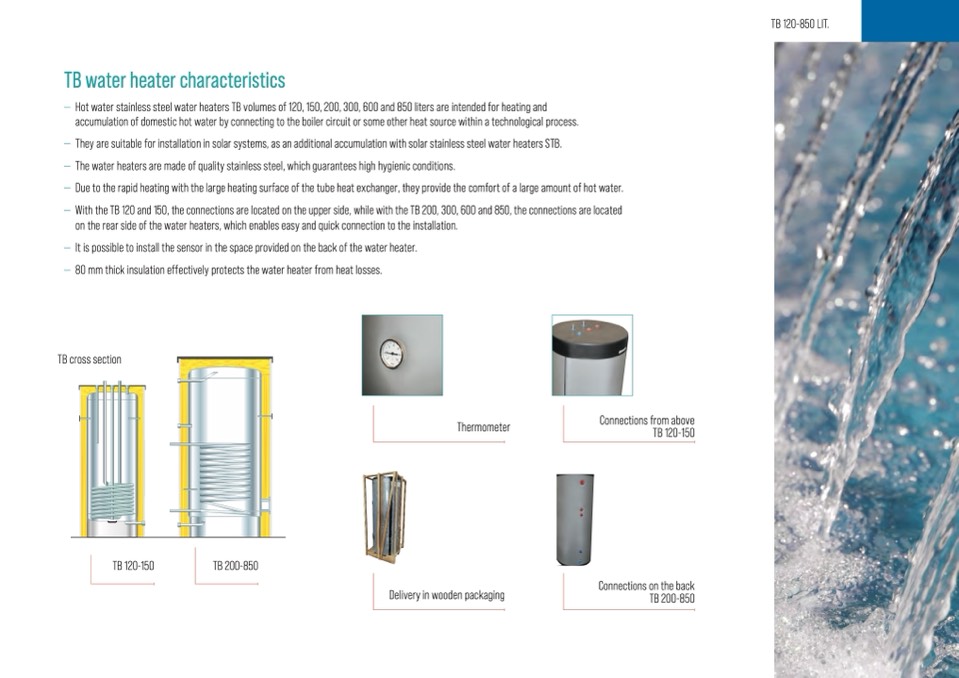

TB water heater characteristics

— Hot water stainless steel water heaters TB volumes of 120, 150, 200, 300, 600 and 850 liters are intended for heating and

accumulation of domestic hot water by connecting to the boiler circuit or some other heat source within a technological process.

— They are suitable for installation in solar systems, as an additional accumulation with solar stainless steel water heaters STB.

— The water heaters are made of quality stainless steel, which guarantees high hygienic conditions.

— Due to the rapid heating with the large heating surface of the tube heat exchanger, they provide the comfort of a large amount of hot water.

— With the TB 120 and 150, the connections are located on the upper side, while with the TB 200, 300, 600 and 850, the connections are located

on the rear side of the water heaters, which enables easy and quick connection to the installation.

— It is possible to install the sensor in the space provided on the back of the water heater.

— 80 mm thick insulation effectively protects the water heater from heat losses.

TB cross section

TB 120-850 LIT.

Thermometer

Connections from above

TB 120-150

TB 120-150

TB 200-850

Delivery in wooden packaging

Connections on the back

TB 200-850
