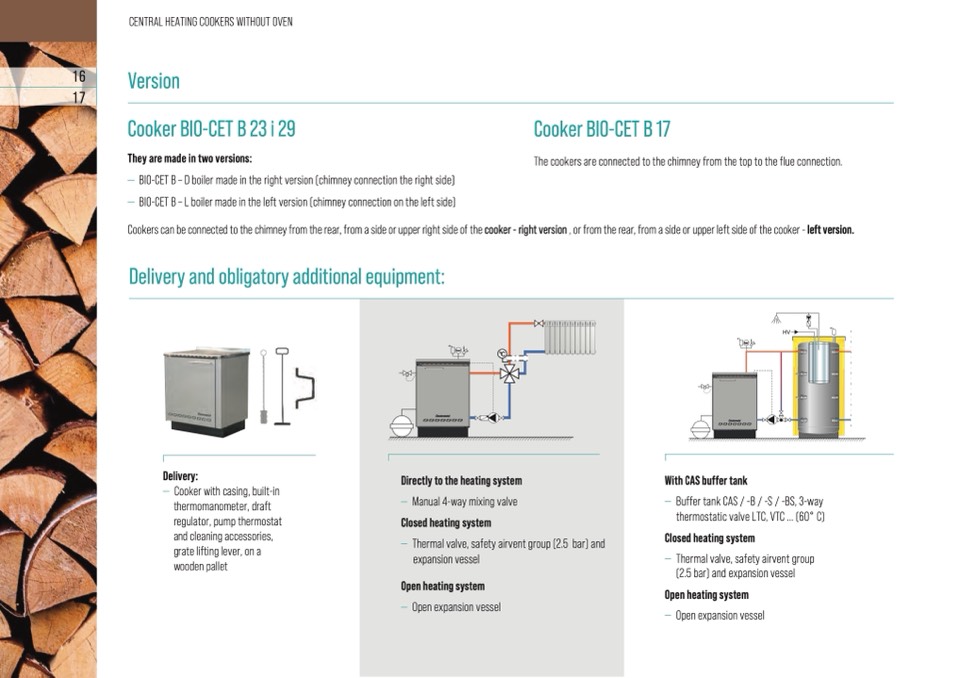

Version

Cooker BIO-CET B 23 i 29

They are made in two versions:

— BIO-CET B – D boiler made in the right version (chimney connection the right side)

— BIO-CET B – L boiler made in the left version (chimney connection on the left side)

CENTRAL HEATING COOKERS WITHOUT OVEN

Cookers can be connected to the chimney from the rear, from a side or upper right side of the cooker - right version , or from the rear, from a side or upper left side of the cooker - left version.

Delivery and obligatory additional equipment:

Delivery:

— Cooker with casing, built-in

thermomanometer, draft

regulator, pump thermostat

and cleaning accessories,

grate lifting lever, on a

wooden pallet

Directly to the heating system

— Manual 4-way mixing valve

Closed heating system

— Thermal valve, safety airvent group (2.5 bar) and

expansion vessel

Open heating system

— Open expansion vessel

With CAS buffer tank

bar

Cooker BIO-CET B 17

The cookers are connected to the chimney from the top to the flue connection.

— Buffer tank CAS / -B / -S / -BS, 3-way

thermostatic valve LTC, VTC ... (60° C)

Closed heating system

— Thermal valve, safety airvent group

(2.5 bar) and expansion vessel

Open heating system

— Open expansion vessel
