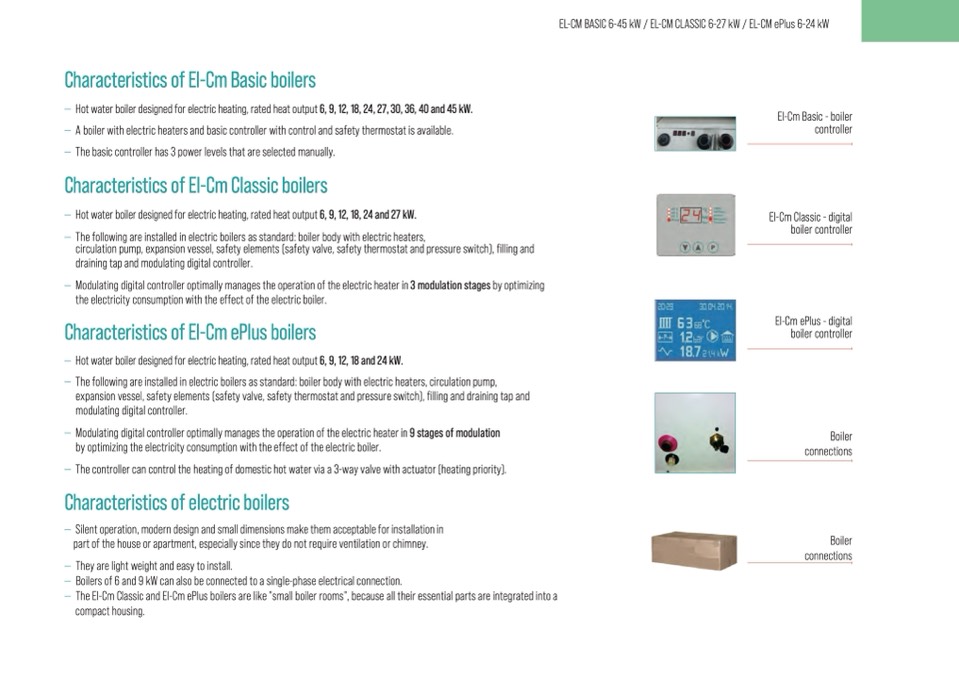

Characteristics of El-Cm Basic boilers

— Hot water boiler designed for electric heating, rated heat output 6, 9, 12, 18, 24, 27, 30, 36, 40 and 45 kW.

— A boiler with electric heaters and basic controller with control and safety thermostat is available.

— The basic controller has 3 power levels that are selected manually.

Characteristics of El-Cm Classic boilers

— Hot water boiler designed for electric heating, rated heat output 6, 9, 12, 18, 24 and 27 kW.

— The following are installed in electric boilers as standard: boiler body with electric heaters,

circulation pump, expansion vessel, safety elements (safety valve, safety thermostat and pressure switch), filling and

draining tap and modulating digital controller.

— Modulating digital controller optimally manages the operation of the electric heater in 3 modulation stages by optimizing

the electricity consumption with the effect of the electric boiler.

Characteristics of El-Cm ePlus boilers

— Hot water boiler designed for electric heating, rated heat output 6, 9, 12, 18 and 24 kW.

— The following are installed in electric boilers as standard: boiler body with electric heaters, circulation pump,

expansion vessel, safety elements (safety valve, safety thermostat and pressure switch), filling and draining tap and

modulating digital controller.

— Modulating digital controller optimally manages the operation of the electric heater in 9 stages of modulation

by optimizing the electricity consumption with the effect of the electric boiler.

— The controller can control the heating of domestic hot water via a 3-way valve with actuator (heating priority).

Characteristics of electric boilers

— Silentoperation,moderndesignandsmalldimensionsmakethemacceptableforinstallationin

part of the house or apartment, especially since they do not require ventilation or chimney.

— They are light weight and easy to install.

— Boilers of 6 and 9 kW can also be connected to a single-phase electrical connection.

— The El-Cm Classic and El-Cm ePlus boilers are like "small boiler rooms", because all their essential parts are integrated into a

compact housing.

El-Cm Basic - boiler

controller

El-Cm Classic - digital

boiler controller

El-Cm ePlus - digital

boiler controller

Boiler

connections

Boiler

connections

EL-CM BASIC 6-45 kW / EL-CM CLASSIC 6-27 kW / EL-CM ePlus 6-24 kW
