Flue gas elbows and tubes

Flue gas elbow

(mm)

Flue gas tube L=500

(mm)

Flue gas tube L=1000

(mm)

FLUE GAS TUBES AND ELBOWS

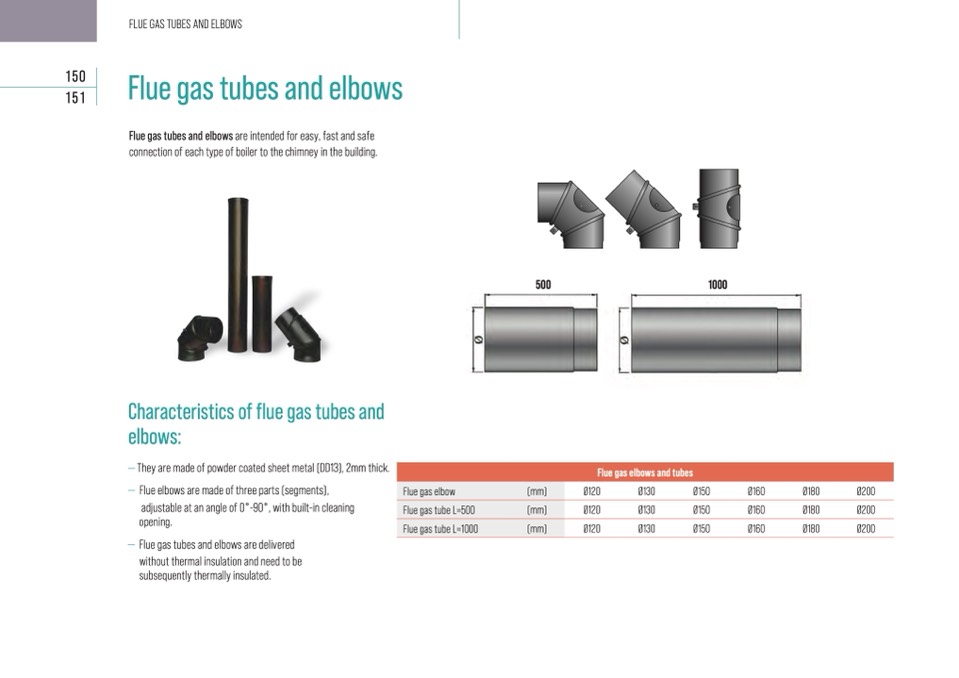

Flue gas tubes and elbows

Flue gas tubes and elbows are intended for easy, fast and safe

connection of each type of boiler to the chimney in the building.

Characteristics of flue gas tubes and

elbows:

— They are made of powder coated sheet metal (DD13), 2mm thick.

— Flue elbows are made of three parts (segments),

adjustable at an angle of 0°-90°, with built-in cleaning

opening.

— Flue gas tubes and elbows are delivered

without thermal insulation and need to be

subsequently thermally insulated.

500

1000

Ø120

Ø130

Ø120

Ø130

Ø120

Ø130

Ø150

Ø160

Ø150

Ø160

Ø150

Ø160

Ø180

Ø200

Ø180

Ø200

Ø180

Ø200
