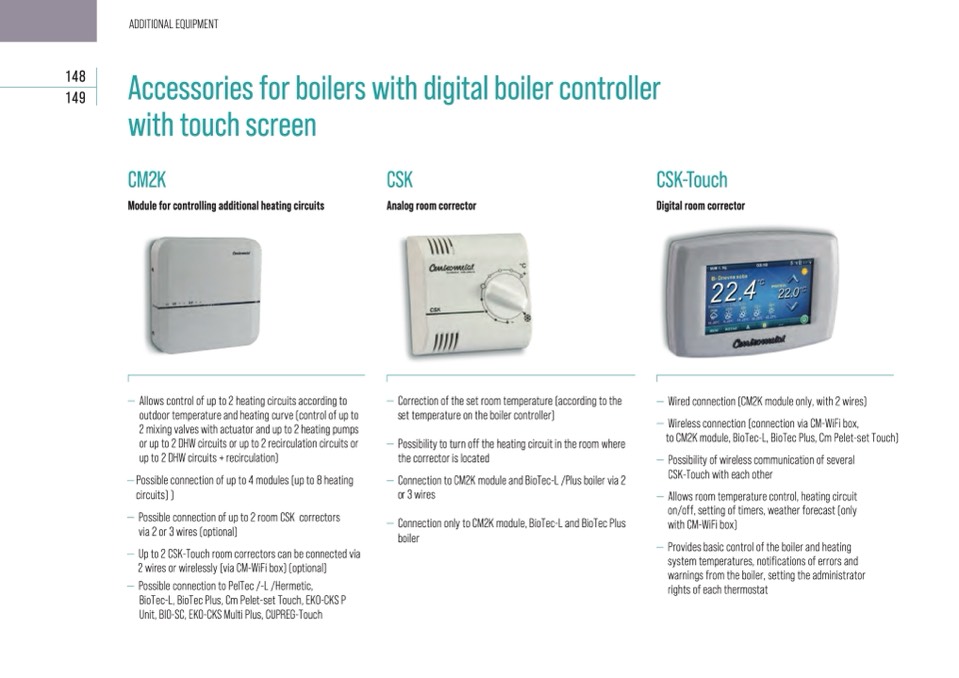

ADDITIONAL EQUIPMENT

Accessories for boilers with digital boiler controller

with touch screen

CM2K

Module for controlling additional heating circuits

— Allows control of up to 2 heating circuits according to

outdoor temperature and heating curve (control of up to

2 mixing valves with actuator and up to 2 heating pumps

or up to 2 DHW circuits or up to 2 recirculation circuits or

up to 2 DHW circuits + recirculation)

— Possible connection of up to 4 modules (up to 8 heating

circuits) )

— Possible connection of up to 2 room CSK correctors

via 2 or 3 wires (optional)

— Up to 2 CSK-Touch room correctors can be connected via

2 wires or wirelessly (via CM-WiFi box) (optional)

— Possible connection to PelTec /-L /Hermetic,

BioTec-L, BioTec Plus, Cm Pelet-set Touch, EKO-CKS P

Unit, BIO-SC, EKO-CKS Multi Plus, CUPREG-Touch

CSK

Analog room corrector

— Correction of the set room temperature (according to the

set temperature on the boiler controller)

— Possibility to turn off the heating circuit in the room where

the corrector is located

— Connection to CM2K module and BioTec-L /Plus boiler via 2

or 3 wires

— Connection only to CM2K module, BioTec-L and BioTec Plus

boiler

CSK-Touch

Digital room corrector

— Wired connection (CM2K module only, with 2 wires)

— Wireless connection (connection via CM-WiFi box,

to CM2K module, BioTec-L, BioTec Plus, Cm Pelet-set Touch)

— Possibility of wireless communication of several

CSK-Touch with each other

— Allows room temperature control, heating circuit

on/off, setting of timers, weather forecast (only

with CM-WiFi box)

— Provides basic control of the boiler and heating

system temperatures, notifications of errors and

warnings from the boiler, setting the administrator

rights of each thermostat
