ROOM CORRECTOR

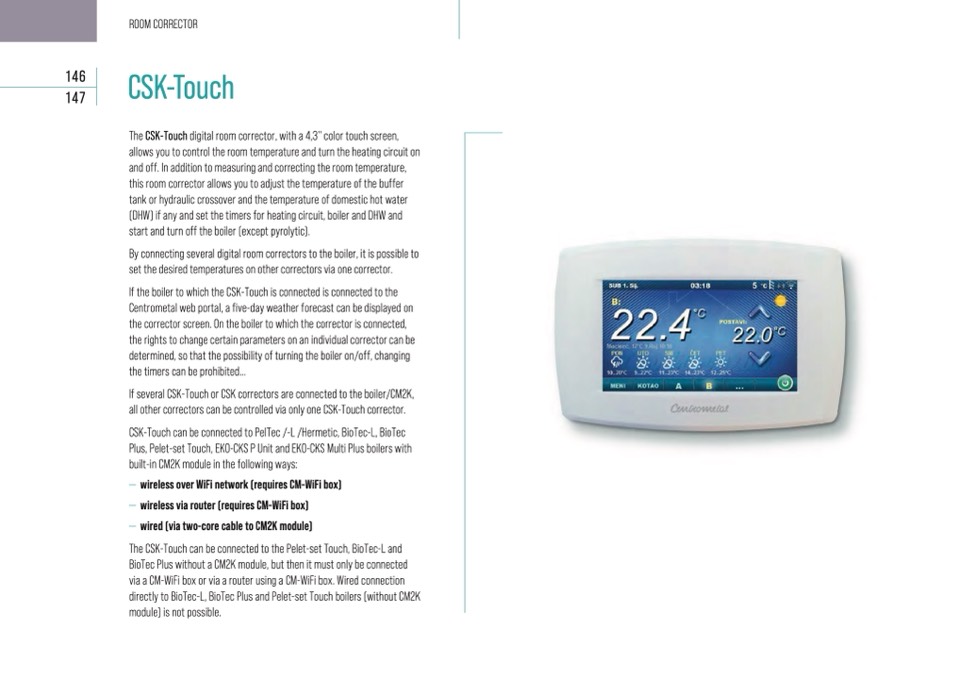

CSK-Touch

The CSK-Touch digital room corrector, with a 4,3'' color touch screen,

allows you to control the room temperature and turn the heating circuit on

and off. In addition to measuring and correcting the room temperature,

this room corrector allows you to adjust the temperature of the buffer

tank or hydraulic crossover and the temperature of domestic hot water

(DHW) if any and set the timers for heating circuit, boiler and DHW and

start and turn off the boiler (except pyrolytic).

By connecting several digital room correctors to the boiler, it is possible to

set the desired temperatures on other correctors via one corrector.

If the boiler to which the CSK-Touch is connected is connected to the

Centrometal web portal, a five-day weather forecast can be displayed on

the corrector screen. On the boiler to which the corrector is connected,

the rights to change certain parameters on an individual corrector can be

determined, so that the possibility of turning the boiler on/off, changing

the timers can be prohibited...

If several CSK-Touch or CSK correctors are connected to the boiler/CM2K,

all other correctors can be controlled via only one CSK-Touch corrector.

CSK-Touch can be connected to PelTec /-L /Hermetic, BioTec-L, BioTec

Plus, Pelet-set Touch, EKO-CKS P Unit and EKO-CKS Multi Plus boilers with

built-in CM2K module in the following ways:

— wireless over WiFi network (requires CM-WiFi box)

— wireless via router (requires CM-WiFi box)

— wired (via two-core cable to CM2K module)

The CSK-Touch can be connected to the Pelet-set Touch, BioTec-L and

BioTec Plus without a CM2K module, but then it must only be connected

via a CM-WiFi box or via a router using a CM-WiFi box. Wired connection

directly to BioTec-L, BioTec Plus and Pelet-set Touch boilers (without CM2K

module) is not possible.
