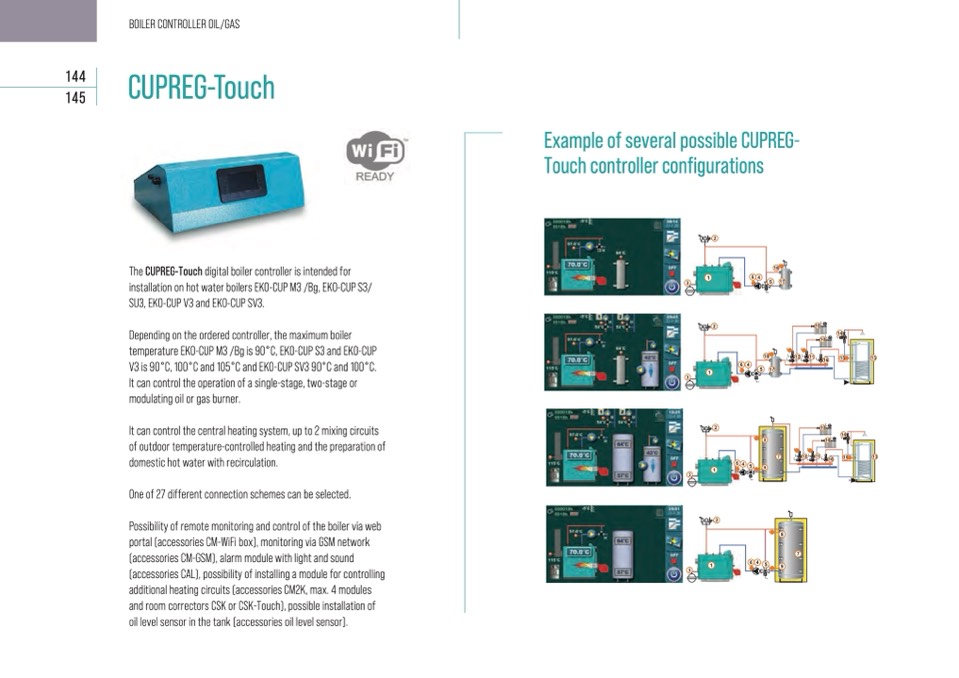

CUPREG-Touch

BOILER CONTROLLER OIL/GAS

The CUPREG-Touch digital boiler controller is intended for

installation on hot water boilers EKO-CUP M3 /Bg, EKO-CUP S3/

SU3, EKO-CUP V3 and EKO-CUP SV3.

Depending on the ordered controller, the maximum boiler

temperature EKO-CUP M3 /Bg is 90°C, EKO-CUP S3 and EKO-CUP

V3 is 90°C, 100°C and 105°C and EKO-CUP SV3 90°C and 100°C.

It can control the operation of a single-stage, two-stage or

modulating oil or gas burner.

It can control the central heating system, up to 2 mixing circuits

of outdoor temperature-controlled heating and the preparation of

domestic hot water with recirculation.

One of 27 different connection schemes can be selected.

Possibility of remote monitoring and control of the boiler via web

portal (accessories CM-WiFi box), monitoring via GSM network

(accessories CM-GSM), alarm module with light and sound

(accessories CAL), possibility of installing a module for controlling

additional heating circuits (accessories CM2K, max. 4 modules

and room correctors CSK or CSK-Touch), possible installation of

oil level sensor in the tank (accessories oil level sensor).

Example of several possible CUPREG-

Touch controller configurations
