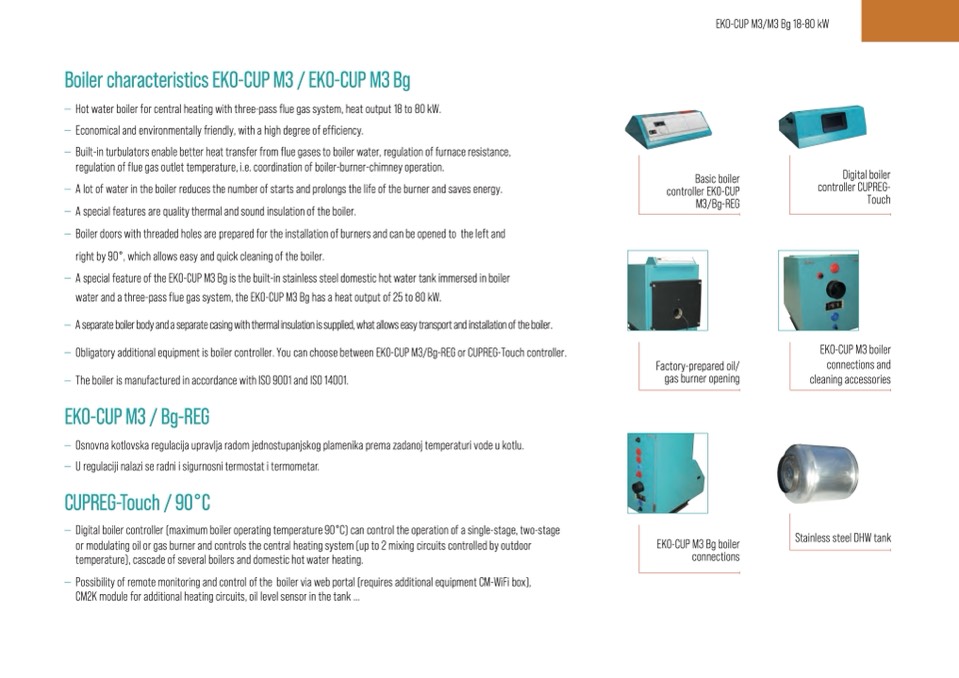

Boiler characteristics EKO-CUP M3 / EKO-CUP M3 Bg

— Hot water boiler for central heating with three-pass flue gas system, heat output 18 to 80 kW.

— Economical and environmentally friendly, with a high degree of efficiency.

— Built-in turbulators enable better heat transfer from flue gases to boiler water, regulation of furnace resistance,

regulation of flue gas outlet temperature, i.e. coordination of boiler-burner-chimney operation.

— A lot of water in the boiler reduces the number of starts and prolongs the life of the burner and saves energy.

— A special features are quality thermal and sound insulation of the boiler.

— Boiler doors with threaded holes are prepared for the installation of burners and can be opened to the left and

right by 90°, which allows easy and quick cleaning of the boiler.

— A special feature of the EKO-CUP M3 Bg is the built-in stainless steel domestic hot water tank immersed in boiler

water and a three-pass flue gas system, the EKO-CUP M3 Bg has a heat output of 25 to 80 kW.

— Aseparateboilerbodyandaseparatecasingwiththermalinsulationissupplied,whatallowseasytransportandinstallationoftheboiler.

— Obligatory additional equipment is boiler controller. You can choose between EKO-CUP M3/Bg-REG or CUPREG-Touch controller.

— The boiler is manufactured in accordance with ISO 9001 and ISO 14001.

EKO-CUP M3 / Bg-REG

— Osnovna kotlovska regulacija upravlja radom jednostupanjskog plamenika prema zadanoj temperaturi vode u kotlu.

— U regulaciji nalazi se radni i sigurnosni termostat i termometar.

CUPREG-Touch / 90°C

— Digital boiler controller (maximum boiler operating temperature 90°C) can control the operation of a single-stage, two-stage

or modulating oil or gas burner and controls the central heating system (up to 2 mixing circuits controlled by outdoor

temperature), cascade of several boilers and domestic hot water heating.

— Possibility of remote monitoring and control of the boiler via web portal (requires additional equipment CM-WiFi box),

CM2K module for additional heating circuits, oil level sensor in the tank ...

Basic boiler

controller EKO-CUP

M3/Bg-REG

Digital boiler

controller CUPREG-

Touch

EKO-CUP M3/M3 Bg 18-80 kW

Factory-prepared oil/

gas burner opening

EKO-CUP M3 boiler

connections and

cleaning accessories

EKO-CUP M3 Bg boiler

connections

Stainless steel DHW tank
