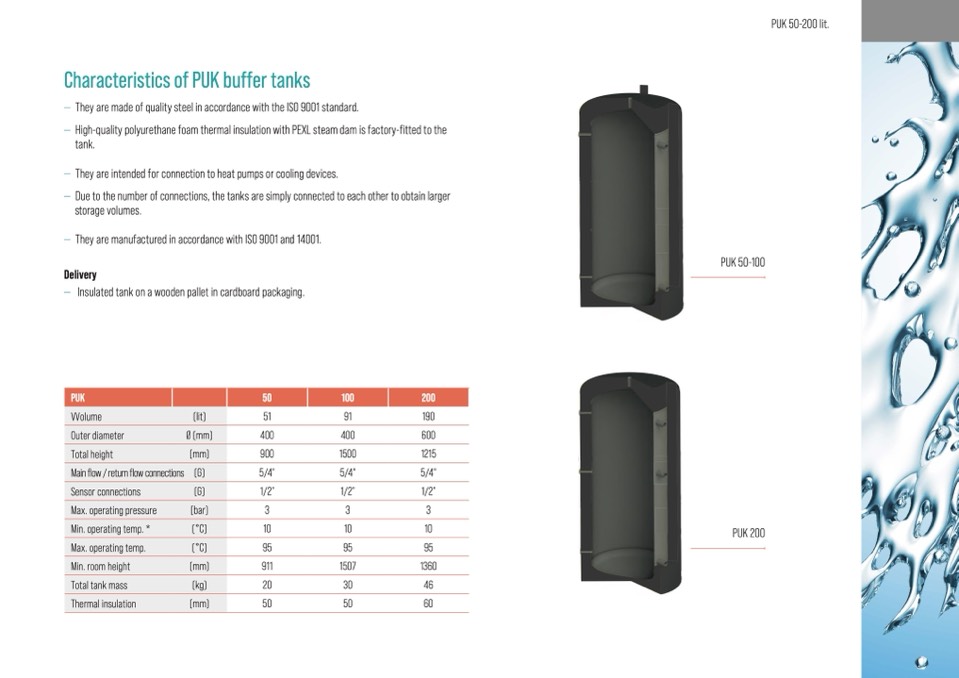

Characteristics of PUK buffer tanks

— They are made of quality steel in accordance with the ISO 9001 standard.

— High-quality polyurethane foam thermal insulation with PEXL steam dam is factory-fitted to the

tank.

— They are intended for connection to heat pumps or cooling devices.

— Due to the number of connections, the tanks are simply connected to each other to obtain larger

storage volumes.

— They are manufactured in accordance with ISO 9001 and 14001.

Delivery

— Insulatedtankonawoodenpalletincardboardpackaging.

PUK 50-100

PUK 50-200 lit.

PUK

VVolume

(lit)

50

100

200

51

91

190

400

400

600

900

1500

1215

5/4"

5/4"

5/4"

1/2"

1/2"

1/2"

3

3

3

Outer diameter

Ø (mm)

Total height

(mm)

Main flow / return flow connections (G)

Sensor connections

(G)

Max. operating pressure

(bar)

Min. operating temp. *

(°C)

10

95

911

20

50

10

10

95

95

1507

1360

30

46

50

60

PUK 200

Max. operating temp.

(°C)

Min. room height

(mm)

Total tank mass

Thermal insulation

(kg)

(mm)
